BATT CHGR 6/12V 1.1A IP65 VICTRO

SKU: BATT CHGR 6/12V 1.1A IP65 VICTRO

BRAND: Victron

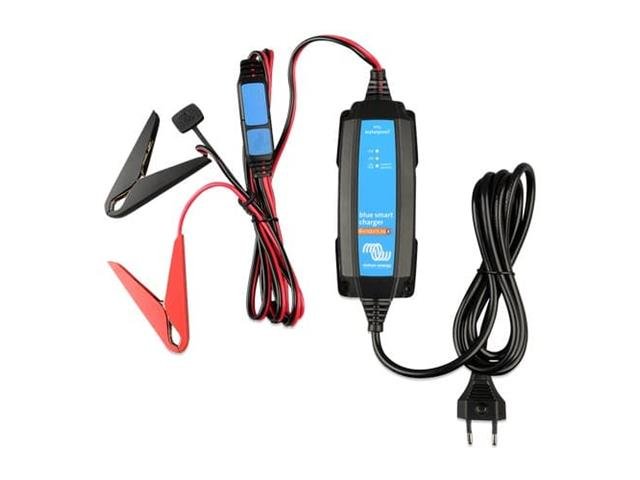

Battery Charger Blue Smart 6/12VDC 1.1A IP65 Victron (38x64x153mm) 0.4kg

Blue Smart Battery Charger

Feature

  • Water, dust and chemical resistant
  • Seven step smart charge algorithm
  • Recovery of fully discharged ‘dead’ batteries
  • Automatic power supply function
  • Severe cold performance: down to -30°C
  • Several other battery life enhancing features
  • Low power mode to charge smaller batteries
  • Li-ion battery mode
  • Setup and configure, readout of voltage and current by Bluetooth Smart

Specifications

  • Blue Smart IP65 Charger : 6 V/12 V - 1.1 A
  • Input voltage and frequency range : 100 - 250VAC
  • Efficiency : 82%
  • Standby power consumption : <0,5 W
  • Minimum battery voltage : Starts charging from down to 0 V
  • Charge voltage 'absorption'
    • Normal: 7,2 V | 14,4 V
    • High: 7,35 V | 14,7 V
    • Li-ion: 7,1 V | 14,2 V
  • Charge voltage 'float'
    • Normal: 14,4 V
    • High: 14,7 V
    • Li-ion: 14,2 V
  • Normal: 28,8 V
    • High: 29,4 V
    • Li-ion: 28,4 V
  • Charge voltage 'storage'
  • Normal: 6,6 V | 13,2 V
  • High: 6,6 V | 13,2 V
  • Li-ion: 6,75 V | 13,5 V
  • Charge current : 1.1 A
  • Low current mode : 0,5A
  • Temperature compensation (lead-acid batteries only) 8 mV/°C | 16 mV/°C
  • Powersupply mode : Yes
  • Back current drain : 0,1 Ah/month (140uA)
  • Protection : Reverse polarity, Output short circuit, Over temperature
  • Operating temp. range : -30 to +50°C (full rated output up to 30°C)
  • Humidity (non-condensing) : Max 95%
  • Charge algorithm : 7-stage adaptive
  • Bluetooth : -4dBm, 2402 – 2480 MHz

ENCLOSURE

  • Battery-connection : Black and red cable of 1,5 meter
  • 230V AC-connection : 1.5m cable with CEE 7/16 or AS/NZS 3112 plug
  • Protection category : IP65 (splash and dust proof)
  • Weight : 0,4 kg
  • Dimensions (h x w x d) : 38 x 64 x 153 mm



Downloads

Additional Information

Device Battery Charger
Type Blue Smart
