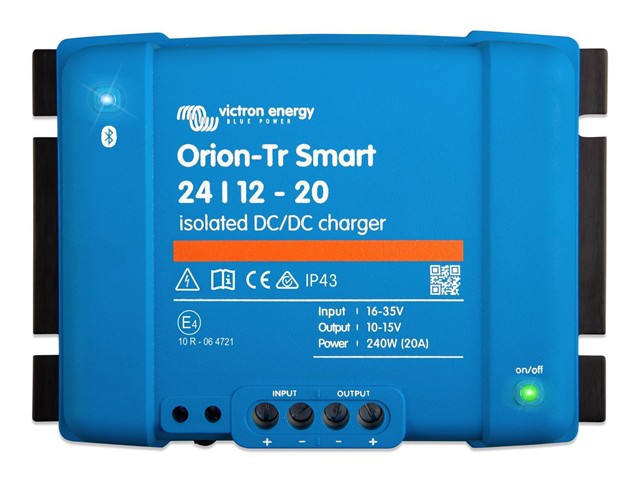

VICT ORION-TR SMART 24/12 20A

Name: VICT ORION-TR SMART 24/12 20A - Communica [Part No: VICT ORION-TR SMART 24/12 20A]
Brand: Victron
SKU: VICT ORION-TR SMART 24/12 20A
Price: 2152 ZAR
Availability: OutOfStock

SKU: VICT ORION-TR SMART 24/12 20A

BRAND: Victron

Sold Out
R 2,474.80_{(inc VAT)}
R 2,152.00_{(ex VAT)}

Collections: Power

Type: Solar

Category: DC DC Charger

Victron Isolated DC-DC Charger, I/P Range:16~35V, O/P:12,2V, 240W, Max Cable Cross-Section:16 mm² (AWG6), DC Connection:screw Terminals, +/- 0,2V, O/P Voltage ADJ Range:10~15V, 3-Stage Charger, 130x186x70mm, 1.3kg, IP43

Isolated DC-DC Charger

Specifications

Specification	24/12-20 (240W)
Input voltage range	16–35 V
Under-voltage shut down	14 V
Under-voltage restart	15 V
Nominal output voltage	12.2 V
Output voltage adjust range	10–15 V
Output voltage tolerance	±0.2 V
Output noise	2 mV RMS
Continuous output current @ 40°C	20 A
Maximum output current (10 s)	25 A
Short-circuit output current	50 A
Continuous output power @ 25°C	300 W
Continuous output power @ 40°C	240 W
Efficiency	88%
No-load input current	<100 mA

General

Standby current	<1 mA
Galvanic isolation	200 V DC between input, output and case
Operating temperature	−20 to +55°C
Derating	3% per °C above 40°C
Humidity	Max. 95% non-condensing
DC connection	Screw terminals
Maximum cable cross-section	16 mm² / AWG6
Weight	1.3 kg (3 lb)
Dimensions (H × W × D)	130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)

Downloads

Datasheet - VICT ORION-TR SMART 24/12 20A

Additional Information

Device

Charger

Elevate your power management with the VICT ORION-TR SMART 24/12 20A Isolated DC-DC Charger. Designed for efficiency and reliability, this compact charger delivers a robust 240W output, ensuring optimal battery performance and longevity. With a customizable voltage range and superior isolation, it’s the perfect solution for your energy needs. Experience seamless power conversion and enjoy peace of mind with every charge.
