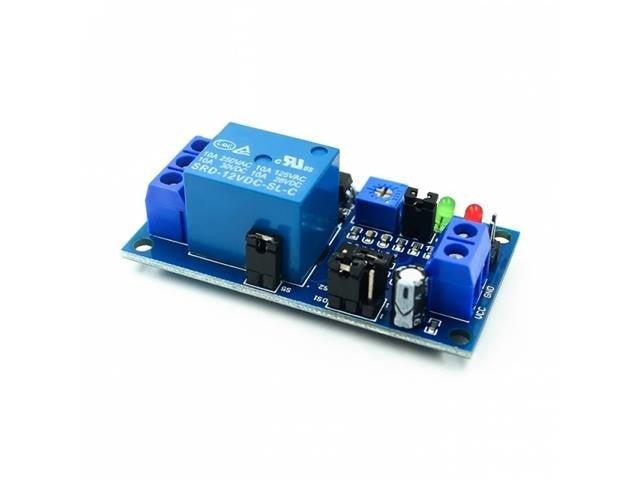

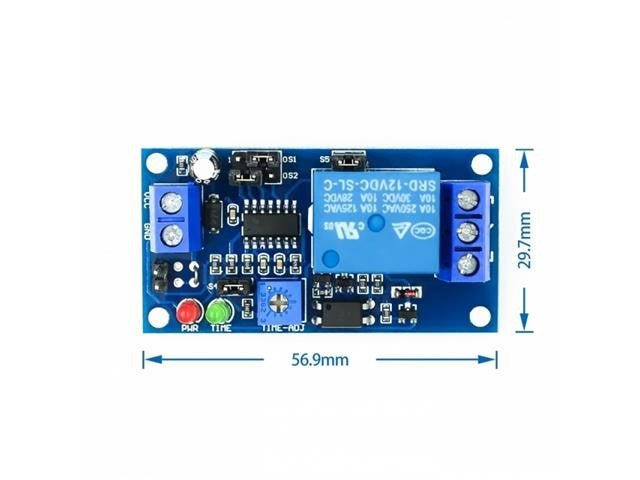

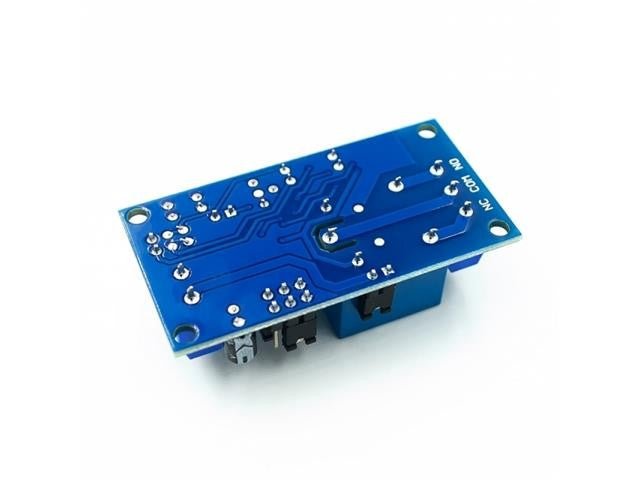

BDD TIMER RELAY BOARD 12V 1S-1HR

SKU: BDD TIMER RELAY BOARD 12V 1S-1HR

BRAND: Communica


Time Delay Off Relay Board (Jumper Set)-12V. 8 Range ADJ 1S-1HR. 250VAC/10A & 30VDC/10A

Time Delay Off Relay Board

Features

  • 8 Time Ranges selectable from 0.1s up to 1 hour
  • Power reversal Protection with protection diode
  • Can be accessed by a large current load (250VAC 10A or 30VDC 10A)
  • Delay Time adjustable with the potentiometer.
  • Delay Control : Turn OFF Delay : Plug on S6

Specifications

  • Input Voltage : 12V
  • Quiescent Dissipation : 5.5mA
  • Maximum Power Consumption : 42mA
  • Relay Load Capacity :
    • 250V 10A AC (2500W ideal power AC)
    • 30V 10A DC (300W ideal power DC)

Additional Information

Device Relay Board
Type Time Delay | Off
