Working/output method:

• Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
• Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
• Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.

Clear & Learn Code:

• Clear function - After pressing the "KEY" button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
• learning function - click the learning button "KEY", LED indicator light indicates that the microprocessor to enter the learning state of the code, press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
• LED flashes to determine the selected function.
• Flashing 1 time - Jogging function
• Flashing 2 times - Self-locking function
• Blink 3 times - Interlock function

Note:

When using for the first time, make sure to clear the factory code and clear the remote control code.

Package included:

• 1 x 220V 1 Channel Wireless Relay Switch

• Input Voltage: DC10-14V
• Standby Current: <5MA
• RF Frequency: 433MHZ
• RF Working mode:Super heterodyne receiver
• Receiver Sensitivity: >90dBm
• Remote Control Distance: >100 meter(In open environment)
• Decoding Way: MCU Software decoding
• Can store the number of remote control: 50
• Support remote control type: Fixed code, learning code
• Channel: 1CH
• Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
• Wiring Method:Fixed wiring terminal
• Working Voltage: DC12V
• Output Current: 10A
• Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC

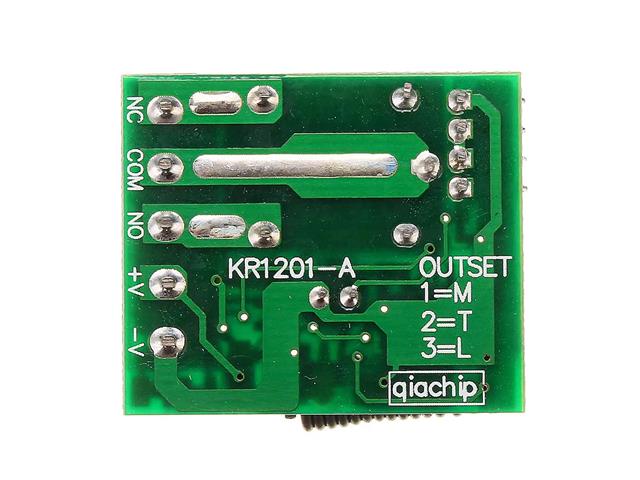

• Output:Normally open,Common,Normally closed

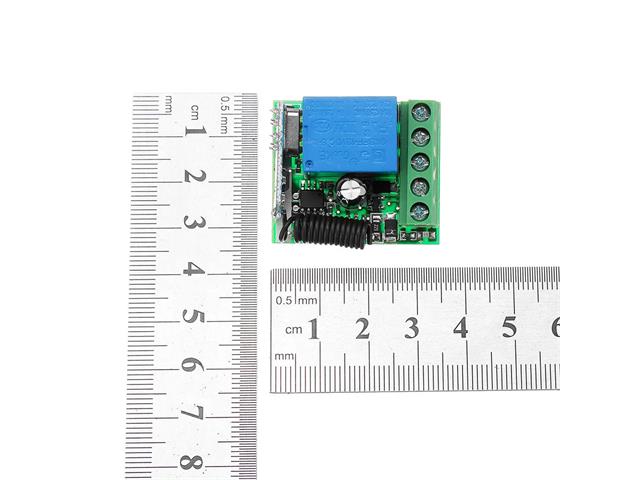

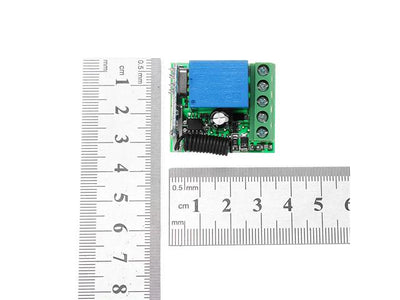

• Dimension:3.5cm x 3cm x 1.6cm
