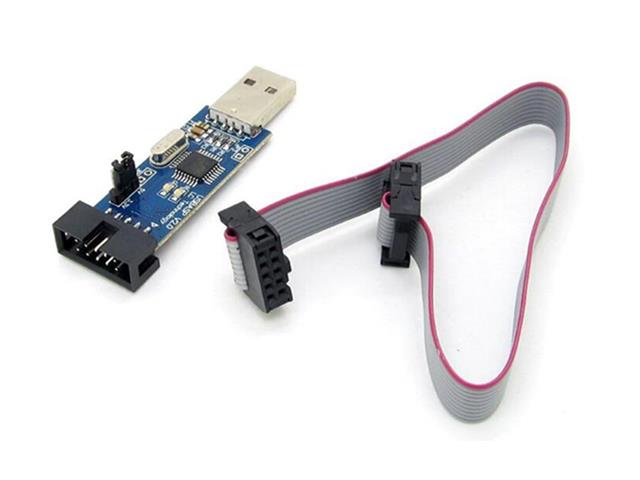

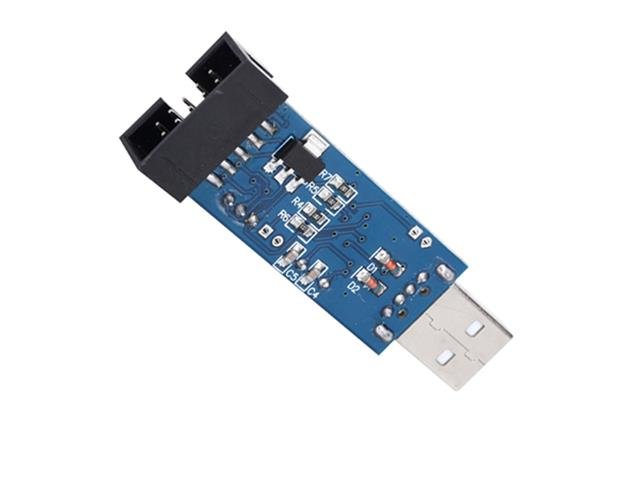

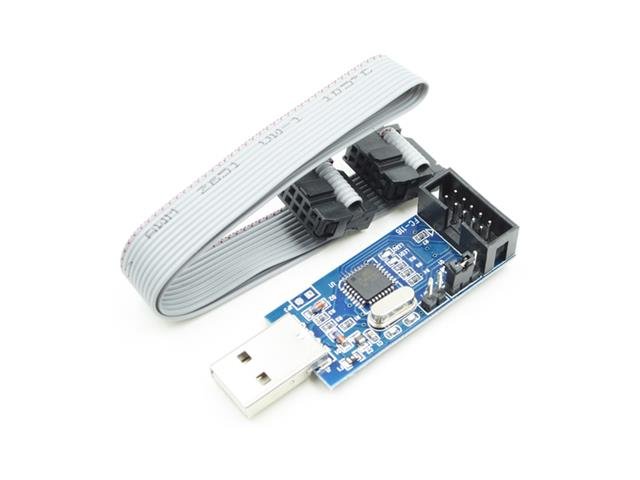

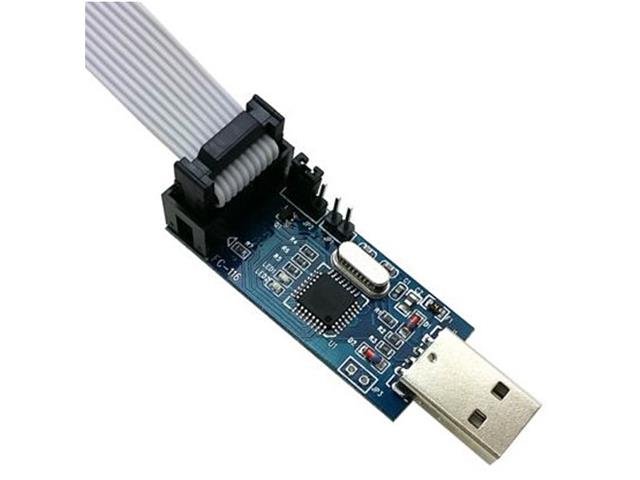

Low Cost USB Programmer for AT51 Series, ATMEGA, ATTINY, AT90 AVR can and AVR PWM Series
Low Cost USB Programmer
Features
- Onboard new imported chips ATMega8A-AU
- With the power and two lights burning
- Onboard 500mA overcurrent protection resettable fuse
- The target board supports 5V and 3.3V power supply
- No need to install drivers
- The new type of self-apply the latest automatic speed.
- Applicable WIN8.1 / 8/7 / XP 32-bit / 64 bit computer systems.
- The product can be connected directly to the computer USB port, USB downloader real product, connected to the target board through it, can be downloaded to the microcontroller programming operation easy to use, especially for notebook computers, desktop computers, programmed through the USB port to download debugging.
Specifications
- 51 serials : AT89S51, AT89S52, AT89S53, AT89S8252
AVR serials:
- ATTiny12(L), ATTiny13(V), ATTiny15(L), ATTiny24(V), ATTiny25(V), ATTiny26(L),
- ATTiny2313(V), ATTiny44(V), ATTiny45(V),ATTiny84(V), ATTiny85(V) , AT90S2313(L),
- AT90S2323(L), AT90S2343(L), AT90S1200(L),AT90S8515(L), AT90S8535(L), ATMEGA48(V),
- ATMEGA8(L), ATMEGA88(V),ATMEGA8515(L), ATMEGA8535(L), ATMEGA16(L),ATMEGA162(V),
- ATMEGA163(L),ATMEGA164(V), ATMEGA165(V), ATMEGA168(V),ATMEGA169(V), ATMEGA169P(V),
- ATMEGA32(L), TMEGA324(V), ATMEGA325(V), ATMEGA3250(V), ATMEGA329(V),ATMEGA3290(V),
- ATMEGA64(L),ATMEGA640(V), ATMEGA644(V), ATMEGA645(V),ATMEGA6450(V), ATMEGA649(V),
- ATMEGA6490(V), ATMEGA128(L),ATMEGA1280(V), ATMEGA1281(V), ATMEGA2560(V),ATMEGA2561(V),
- AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2(B), AT90PWM3(B) and so on.
Additional Information
Device |
Programmer |
Type |
Low Cost | USB | Programmer |
