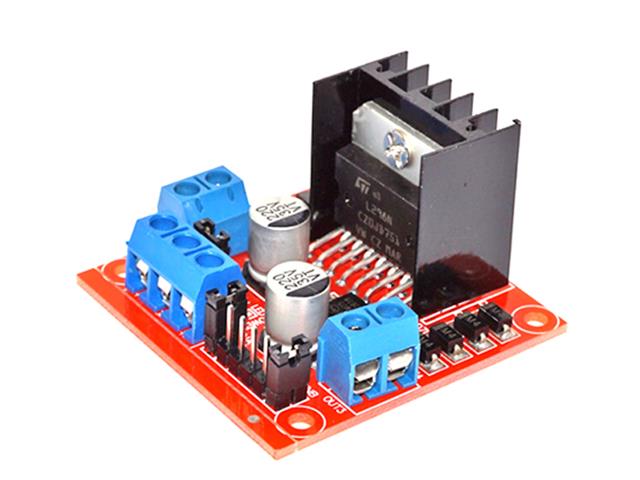

BMT DUAL MOTOR DRIVER L298 SCREW

SKU: BMT DUAL MOTOR DRIVER L298 SCREW

BRAND: Communica


2A Motor Shield, Uses L298 Chip and Drives 2 x 7-24VDC/2A Motors

2A Dual Motor Driver L298 with Screw

Overview

The L298N driver module, using ST's L298N chip can directly drive two 7-24 DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.

Using L298N made by ST company as the control chip,the module has such characteristics as strong driving ability, low calorific value and strong anti-interference ability.

Specifications

  • Driver Chip: L298N DUAL H-Bridge Driver Chip
  • Drive Section Terminal Supply Area VMS: +5 V ~+35 V
  • Drive Section Peak Current IO: 2A / Bridge
  • Logical Part Of The Terminal Supply Area VSS :4.5-5.5V
  • Logical Part Of The Operating Current Range: 0 ~ 36MA
  • Control Signal Input Voltage Range: 4.5-5.5V HIGH LOW 0V
  • Maximum Power Consumption: 20W
  • Storage Temperature: -25 °C ~ +130 °C
  • Driver Board Size: 55mm x 60mm x 30mm

Additional Information

Device Motor Driver
Type Dual | L298 | Screw
