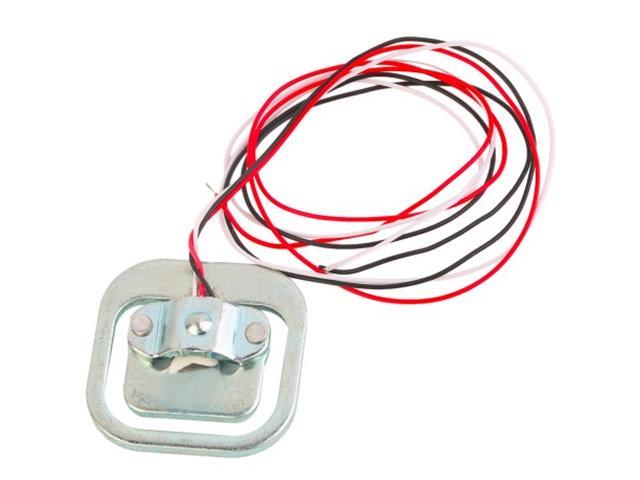

BMT ELECTRONIC LOAD CELL 50KG

SKU: BMT ELECTRONIC LOAD CELL 50KG

BRAND: Communica


50KG Load Cell Sensor, Rated Output : 1.0MV/V±0.15MV/V. Zero Output : ±0.1MV/V

50KG Load Cell Sensor

Features

100% Brand new and high quality!

Internal 1000Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure.

When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.

The sensor use the following three methods:

  • Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor
  • The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg
  • The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg

Specifications

  • Color : Silver
  • Size : 35x35mm

    Package Includes:

  • 1x DIY 50Kg Body Load Cell Weighing Sensor Resistance strain Half-bridge

Additional Information

Device Sensor
Type 50kg | Load Cell
