BMT METAL PROBE NTC THERMIS 10K

SKU: BMT METAL PROBE NTC THERMIS 10K

BRAND: Communica

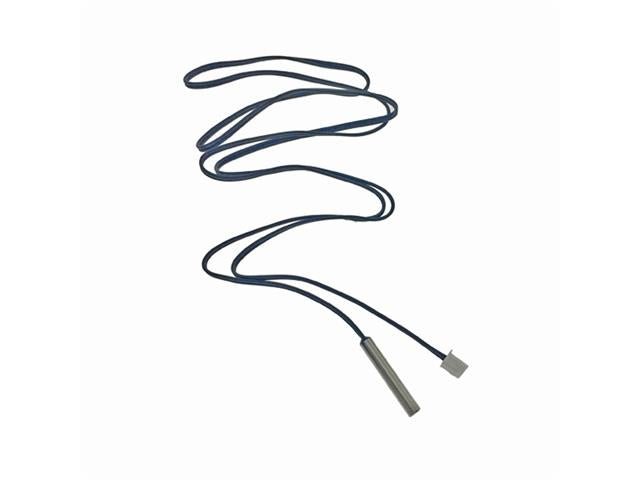

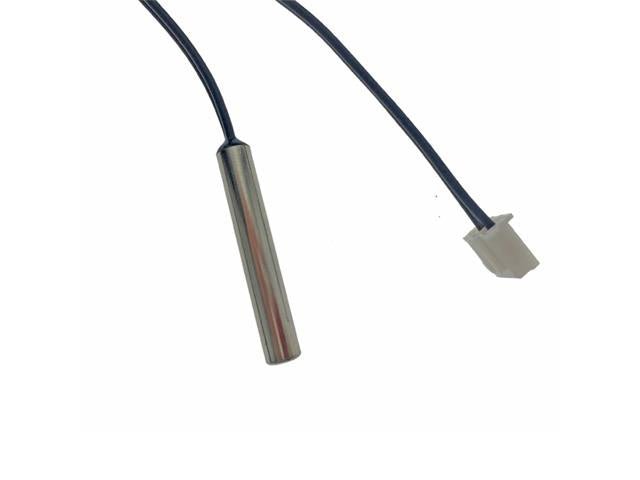

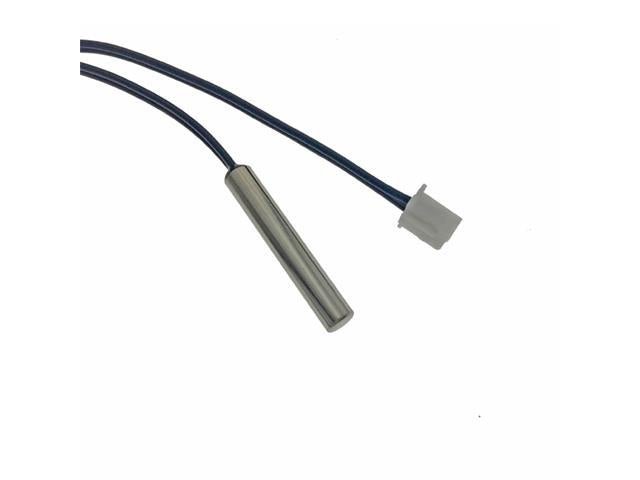

10K +/-1% Metal Probe NTC Thermistor on 1mt Lead, Temperature Sensor Probe Waterproof

Overview

Features

  • High sensitivity, rapid response
  • Compact structure, easy installation, good water resistance
  • The use of wide temperature range, good stability, high reliability
  • Can provide different R, B value of products, interchangeable, high precision

Specification

  • Type: Humidity Sensor
  • Material: Mixture
  • Material Crystal structure: Polycrystallinef
  • Usage: Temperature Sensor
  • Theory: Resistance Sensor
  • Output: Analog Sensor
  • 10K 1% accuracy: High temperature type
  • Resistance accuracy: ± 1%, ± 2%, ± 3%
  • The use of temperature range: -40 ℃ to +300 ℃
  • The maximum rated power: 45mW
  • Thermal time constant: ≤3S (static air)
  • Resistance temperature coefficient: -2 to -5% / ℃
  • Insulation performance: 500V
  • DC test a single root insulation resistance: ≥ 100MΩ
