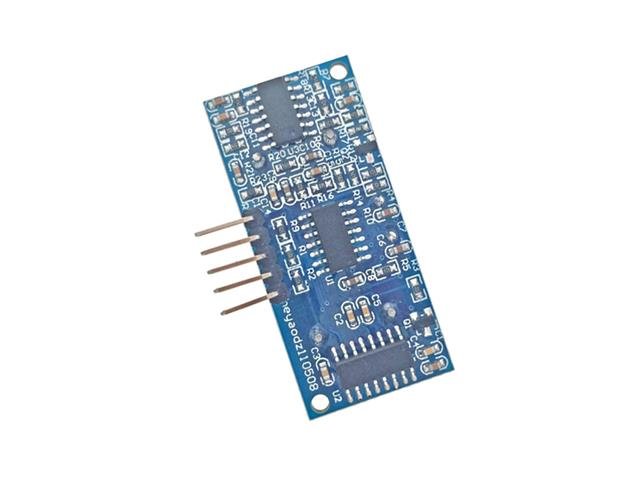

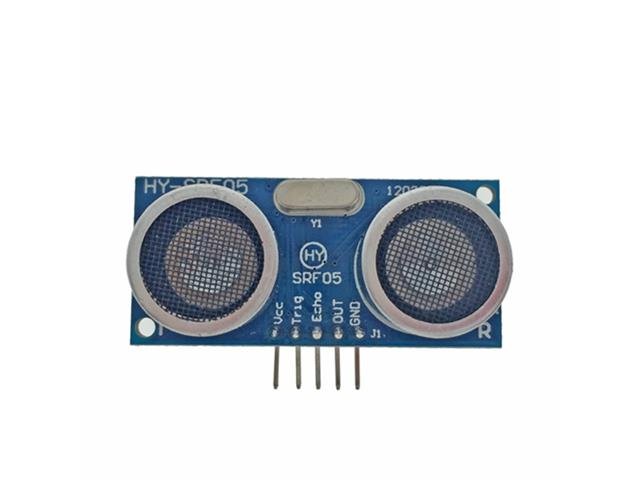

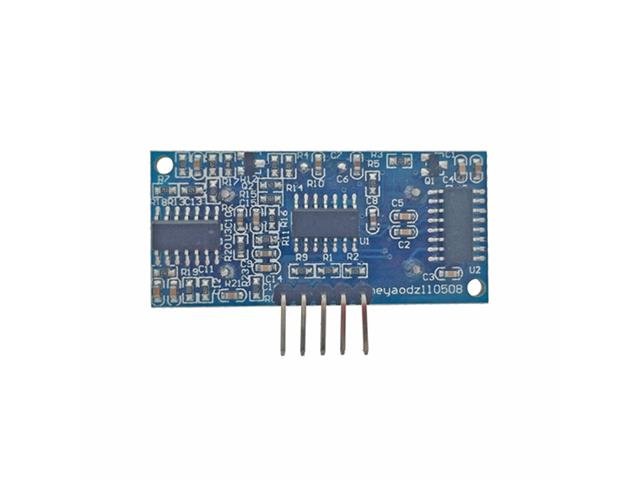

BMT ULTRASONIC SENSOR HY-SRF05

SKU: BMT ULTRASONIC SENSOR HY-SRF05

BRAND: Communica


HY-SRF05 Ultrasonic Distance Sensor Module Measuring Sensor Module

Measuring Sensor Module

Specifications

  • Range: 3cm-4m
  • Best in 30 Degree Angle
  • Electronic brick compatible interface
  • 5VDC Power Supply
  • Breadboard friendly
  • Dual transducer
  • Library ready
  • Working Voltage: 5V (DC)
  • Static Current: Less than 2MA.
  • Output Signal: Electric Frequency Signal, High Level 5V, Low Level 0V.
  • Sensor Angle: Not more than 15 Degrees.
  • DetectioN Distance: 2cm-450cm.
  • High Precision: up to 0.3CM
  • Working Tempter:-20C___+60C
  • Weight: 10G Detecting
  • Size: 45x 21mm (L X W)
  • Connector Pin:

  • VCC
  • TRIG (T)
  • ECHO(R)
  • OUT
  • GND

Additional Information

Device Sensor Module
Type Measuring
