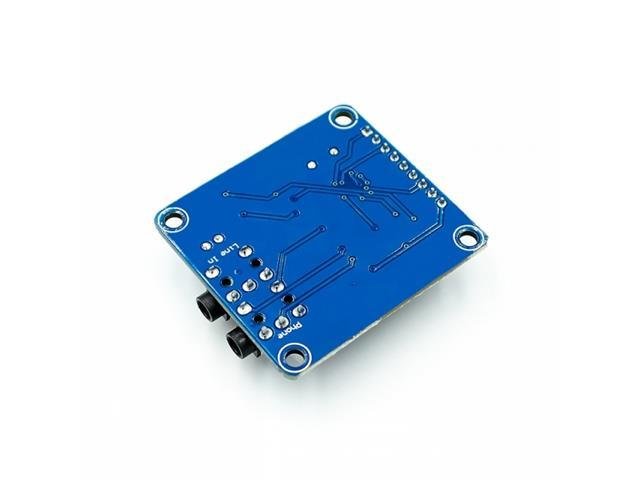

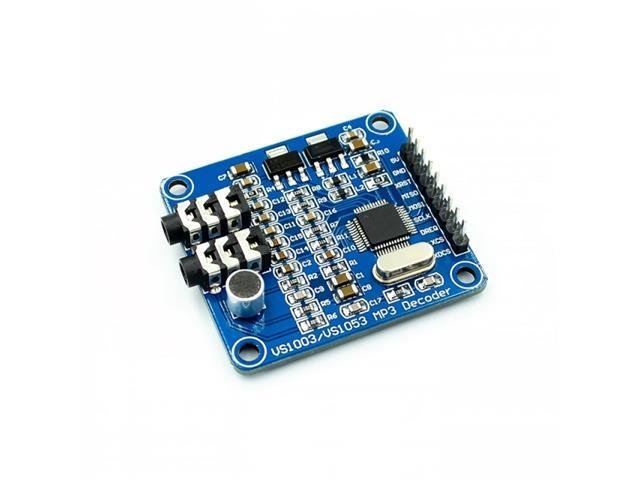

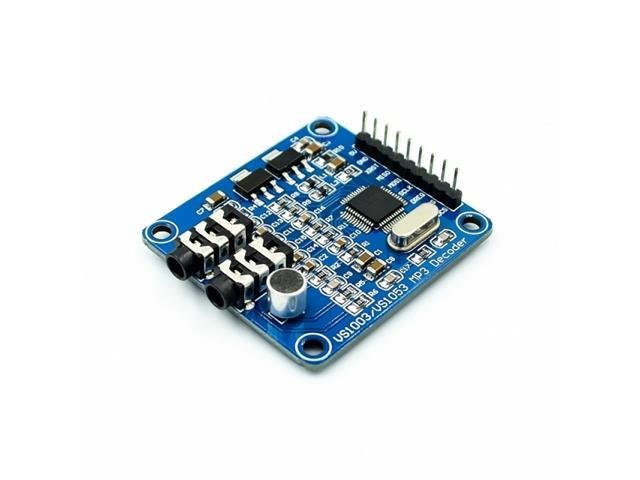

MP3 MP3+V, WMA, WAV, MIDI, SP-MIDI Decoder/Encoder Development Board. Supports MP3 and WAV Streams and Recording.
SP-MIDI Decoder/Encoder Development Board
Specifications
VS1003: VS1003 audio decoding formats: MP3, MP3 + V, WMA, WAV, MIDI, SP-MIDI; recording encoding format: IMA ADPCM (monaural), microphone and line input (Line input) two input methods; supports MP3 and WAV streams; low power consumption; has internal PLL clock frequency multiplier; quality stereo DAC (DAC); adjustable on-chip analog to digital converter (ADC) 16 spaces; quality stereo ear drive (30 euro); separate analog, digital, and IO power supply; serial data and control interface (SPI);
SPI interface, the control signal lines are drawn
1PCS headphone and audio output interface
1PCS microphone for recording
1PCS months line_in input interface
The power indicator
Onboard 3.3V and 2.5V LDO 1117, provides 800mA maximum current
A single power supply: +5 VDC, capacitor filter
12.288 Mhz crystal
PCB size: 50x40.5 mm
Additional Information
Device
Decoder/Encoder Development Board
Type
SP-MIDI
Unlock your audio creativity with the BMT VS1003B MP3 Decoder/Encoder Development Board. This versatile board supports multiple formats including MP3, WMA, and WAV, allowing you to stream and record high-quality audio effortlessly. With low power consumption and a compact design, it's perfect for your next DIY audio project. Enhance your sound experience today!
