CEN SD04 SMART (T10) SECT KIT

Name: CEN SD04 SMART (T10) SECT KIT - Communica [Part No: CEN SD04 SMART (T10) SECT KIT]
Brand: Centurion
SKU: CEN SD04 SMART (T10) SECT KIT
Price: 2640 ZAR
Availability: InStock
Rating: 5.00 (3 reviews)

SKU: CEN SD04 SMART (T10) SECT KIT

BRAND: Centurion

In Stock
R 3,036.00_{(inc VAT)}
R 2,640.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Garage Door Motors

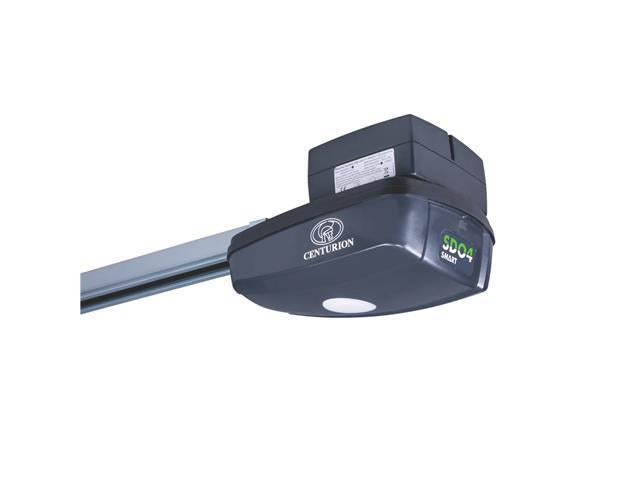

CENTURION SD04 Smart (T10) Sectional Garage Door Motor Kit, Includes : (2 X 4 Button Remotes, 2X12V3, 4A Batteries, 1 X Single Piece Track 3M SECT/D Belt)

Sectional Garage Door Motor Kit

Specifications

Technical Data : T10
Input voltage : 230V AC +/-10% @ 50/60Hz1
Motor voltage : 24V DC
Motor power supply - rated : 80W DC
Motor supply Battery supply : 2 x 3.4Ah 12V DC
Maximum door width : 6.5 metres
Maximum door area : 12 Square meters
Maximum push/pull force : 40kgf
Maximum lifting capacity : 1000N
Operations in standby mode : Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
Maximum operator travel speed : 9m/min
Door travel adjustment : Physical end-stops (Automatic limit set)
Safety obstruction force system : Built-in menu
Light LED : 2W
Autoclose : Menu Selectable
Infrared safety beams : Menu Selctable (Optional but recommended)
Onboard receiver type : Code-hopping single channel
Receiver code storage capacity : 20x 4-Button Transmitters
Receiver frequency : 433.92Mhz

Downloads

Datasheet - CEN SD04 SMART (T10) SECT KIT

Additional Information

Device	Motor Kit
Type	Sectional \| Garage Door
