Dahua Starlight HDCVI Bullet Camera 5MP 2.8mm Fixed Lens, 30M IR, 1/2.7 inch CMOS, Build-In MIC, MAX Res:2880x1620, CVI/CVBS/AHD/TVI, M12, BLC/HLC/DWDR, 2D NR, DWDR, Max 25fps@5MP, IP67, DC12V, 166×69x70mm, 0,33kg

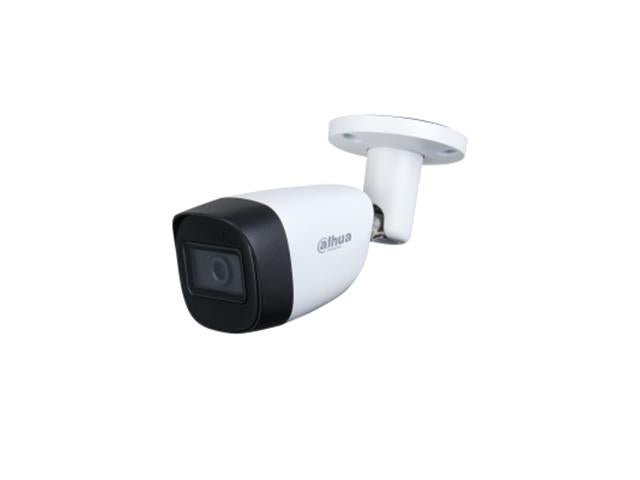

Starlight HDCVI Bullet Camera 5MP
Feature(s)
- Max 25 fps@5MP (16:9 video output)
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm optional)
- Max. IR length 30m, Smart IR
- Built-in mic(-A)
- IP67, 12V DC
Specifications
Camera
- Image Sensor : 1/2.7 inch CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Pixel : 5MP
- Scanning System : Progressive
- Electronic Shutter Speed
- PAL: 1/25 s–1/100,000 s
- NTSC: 1/30 s–1/100,000 s
- S/N Ratio : > 65 dB
- Min. Illumination : 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
- Illumination Distance : 30 m (98.4 ft)
- Illuminator On/Off Control Auto; manual
- Illuminator Number : 3
- Pan/Tilt/Rotation Range
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 2.8 mm
- Max. Aperture : F1.6
- Field of View : 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
- Iris Type : Fixed iris
- Close Focus Distance : 2.8 mm: 0.9 m (3.0 ft)
DORI Distance
- Lens : 2.8mm
- Detect : 63.6 m (208.7 ft)
- Observe : 25.4 m (83.3 ft)
- Recognize : 12.7 m (41.7 ft)
- Identify : 6.4 m (21.0 ft)
Video
- Frame Rate
- CVI:
- PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
- NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
- AHD:
- PAL: 4M@25 fps;
- NTSC: 4M@30 fps
- TVI:
- PAL: 4M@25 fps;
- NTSC: 4M@30 fps
- CVBS:
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
- Day/Night : Auto switch by ICR
- BLC : BLC/HLC/DWDR
- WDR : DWDR
- White Balance : Auto; manual
- Gain Control : Auto; manual
- Noise Reduction : 2D NR
- Smart IR : Yes
- Mirror : Off/On
- Privacy Masking : Off/On (8 areas, rectangle)
Port
- Audio Interface : One channel built-in mic (-A)
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
- Power Supply : 12V ±30% DC
- Power Consumption : Max 3.7W (12V DC, IR on)
Environment
- Operating Temperature : –40°C to +60°C (–40°F to 140°F); < 95% (non- condensation)
- Storage Temperature : –40°C to +60°C (–40°F to 140°F); < 95% (non- condensation)
- Protection Grade : IP67
Structure
- Casing : Metal throughout the whole casing
- Camera Dimensions : 166.6 mm × 69.7 mm × 70.0 mm(6.56" × 2.75" × 2.75")
- Net Weight : 0.33 kg (0.73 lb)
- Gross Weight : 0.43 kg (0.95 lb)
