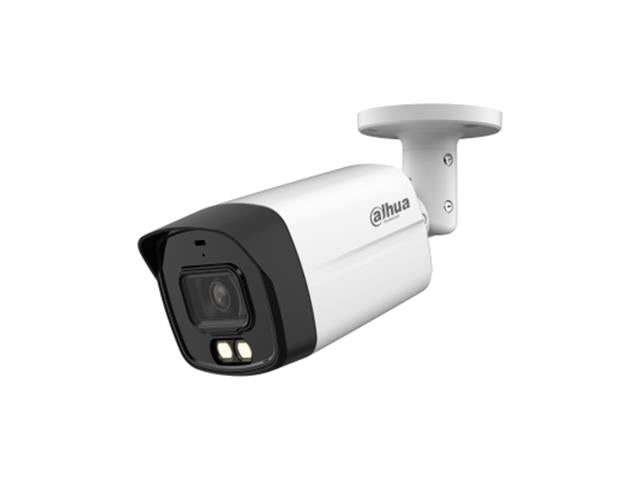

Dahua Lite Series Bullet Camera 5MP 3.6mm Fixed Lens 40M IR, Smart Dual Illuminators, WDR 120db 3D NR, BUILT-IN-MIC, CVI/CVBS/AHD/TVI, BLC; HLC; WDR; HLC-Pro, 12VDC, IP67
5MP Lite Series Bullet Camera
Overview
The Lite Series is a great choice for consumers looking for high quality
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios.
Feature(s)
The parameters and datasheets below can only be applied to 1509-IL series.
In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max 25 fps@5MP (16:9 video output).
- 120 dB true WDR, 3D NR.
- Smart Dual Illuminators.
- 40 m illumination distance.
- Super Adapt.
- Built-in MIC.
- 3.6 mm fixed lens (2.8 mm optional).
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Specifications
Camera
- Pixel : 5MP
- Image Sensor : 5MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed
- PAL: 1/3 s–1/100000 s
- NTSC: 1/4 s–1/100000 s
- Min. Illumination
- 0.001 lux@F1.0 (Color, 30 IRE)
- 0.0001 lux@F1.0 (B/W, 30 IRE)
- 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance
- IR: 40 m (131.23 ft)
- Warm light: 40 m (131.23 ft)
- Illuminator On/Off Control : Auto; manual
- Illuminator Number
- 2 (IR light)
- 2 (Warm light)
- Pan/Tilt/Rotation Range
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 3.6 mm
- Max. Aperture : F1.0
- Field of View : 3.6 mm: H: 89°; V: 47°; D: 104°
- Iris Control : Fixed
- Close Focus Distance : 3.6 mm: 2.2 m (7.22 ft)
DORI distance
- Detect : 78.0 m (255.91 ft)
- Lens : 3.6 mm
- Observe : 31.2 m (102.36 ft)
- Recognize : 15.6 m (51.18 ft)
- Identify : 7.8 m (25.59 ft)
Video
- Video Frame Rate
- CVI:
- PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
- NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps;
- AHD:
- PAL: 4M@25 fps;
- NTSC: 4M@30 fps;
- TVI:
- PAL: 4M@25 fps;
- NTSC: 4M@30 fps;
- CVBS:
- Resolution
- 5M (2880 × 1620);
- 4M (2560 × 1440);
- 1080p (1920 × 1080);
- 960H (960 × 576/960 × 480)
- Day/Night : Auto (ICR)/Color/B/W
- BLC : BLC; HLC; WDR; HLC-Pro
- WDR : 120 dB
- White Balance : Auto; Area white balance
- Gain Control : Auto; manual
- Noise Reduction : 3D NR
- Defog : Electronic defog
- Digital Zoom : 4×
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in MIC
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 5.7 W (12 VDC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F)
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C (-40 °F to 140 °F)
- Protection : IP67
Structure
- Casing Material : Metal front cover + plastic rear barrel + metal bracket
- Product Dimensions : 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.15" × 3.00")
- Packaging Dimensions : 240 mm × 115 mm × 111 mm (9.45" × 4.53" × 4.37")
- Net Weight : 0.34 kg (0.75 lb)
- Gross Weight : 0.51 kg (1.12 lb)
- Installation : Wall mount; ceiling mount; vertical pole mount
