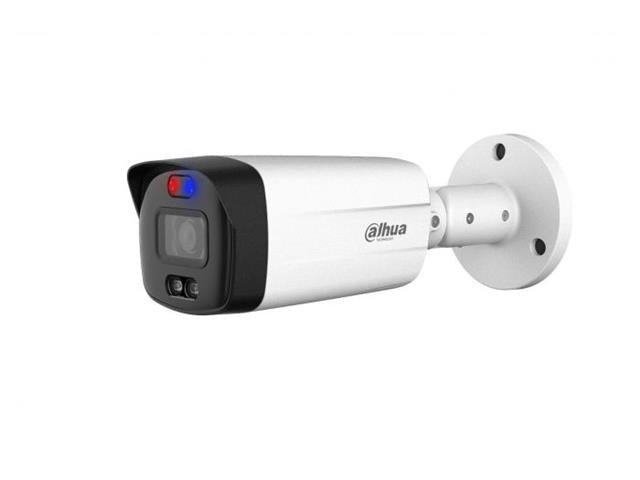

Dahua HDCVI TIOC Bullet Camera 5MP 3.6mm Fixed Lens , 1/2.7" CMOS , Full Colour , Active Deterrence , 40m IR , DWDR , Supports:CVI/TVI/AHD/CVBS , IP67
HDCVI TIOC Bullet Camera
Overview

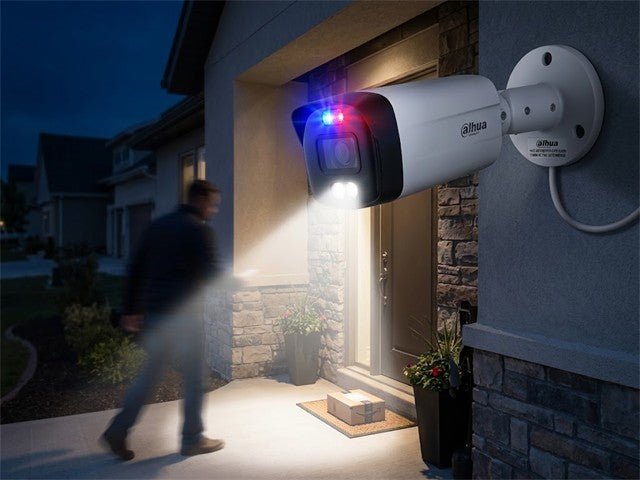

This model supports active deterrence feature which warns off intruders with red blue light and siren even before users are aware of the incident. It is able to alert intruder accurately by SMD Plus or Perimeter Protection of XVR. This camera is an ideal choice for applications which require intrusion protect and video verification, such as courtyards, offices, warehouses, stores.
Feature(s)
- 24/7 color imaging
- Active deterrence with red blue light, siren and alarm out interface
- Built-in mic
- Max. 20 fps@5MP
- 3.6 mm fixed lens (6 mm optional)
- 40 m illumination distance
- IP67, 12V±30% DC

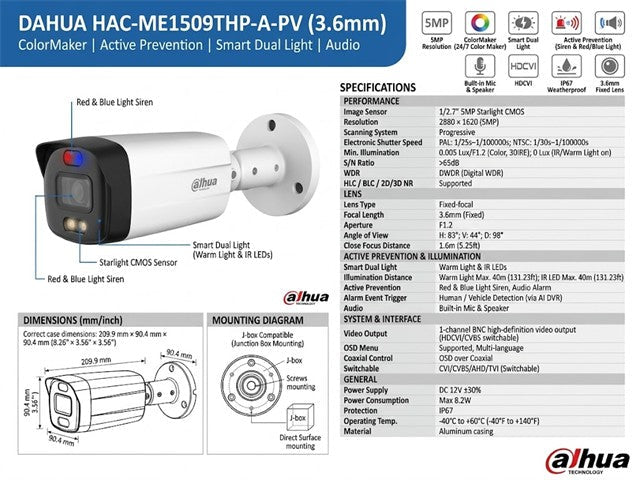

Specifications
Camera
- Image Sensor: 1/2.7"" CMOS
- Max. Resolution: 2592 (H) × 1944 (V)
- Pixel: 5MP
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
- S/N Ratio: >65 dB
- Min. Illumination: 0.005 Lux/F1.2, 0 Lux warm light on
- Illumination Distance: 40 m (131.2 ft)
- Illumination Type: Warm light
- Illuminator On/Off Control: Auto; manual
- Illuminator Number: 2 (Warm light)
- Pan/Tilt/Rotation Range: Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Lens
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 3.6 mm; 6 mm
- Max. Aperture: 3.6 mm: F1.2
6 mm: F1.2
- Field of View: 3.6 mm: H: 83°; V: 60°; D: 112°
6 mm: H: 53°; V: 40°; D: 66°
- Iris Type-Fixed iris
- Close Focus Distance:3.6 mm: 1.9 m (6.23 ft)
6 mm: 4.5 m (14.76 ft)
DORI Distance
- Lens:3.6 mm
- Detect:120 m (393.7 ft)
- Observe:48 m (157.5 ft)
- Recognize:24 m (78.7 ft)
- Identify:12 m (39.4 ft)
Video
- Frame Rate: CVI: 5M@20fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5M@20 fps TVI: 5M@20 fpsCVBS: 960H
- Resolution: 5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- BLC Mode: BLC/HLC/DWDR
- WDR: DWDR
- White Balance: Auto/Manual
- Gain Control: Auto/Manual
- Noise Reduction: 2D
- Smart Light: Yes
- Mirror: Off/On
- Privacy Masking: Off/On (8 Area, Rectangle)
Certifications
- Certifications: CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition)
Port
- Video Output: 1 BNC output
Support CVI/TVI/AHD/CVBS
- Audio Input: Built-in mic
- Alarm out: 1ch alarm out
Active Deterrence
- Red/Blue Light Warning: Flash: 5 s–30 s; frequency: high/medium/low
- Sound Warning:Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB
Power
- Power Supply: 12V ±30% DC
- Power Consumption: Max 7.7W (12V DC, warm light on)
Environment
- Operating Temperature: –40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
- Storage Temperature: –40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
- Ingress Protection: IP67
Structure
- Casing: Cover: Metal
Rear: Plastic
Pedestal: Plastic
- Camera Dimensions: 240.7 mm × Φ90.7 mm (9.48"" × Φ3.57"")
- Net Weight: 0.44 kg (0.97 lb)
- Gross Weight: 0.70 kg (1.54 lb)
Downloads
Additional Information
| Device |
Camera |
| Type |
Bullet |
