DHA IPC-HUM8241-E1-L4 KIT

SKU: DHA IPC-HUM8241-E1-L4 KIT

BRAND: Dahua


Dahua Covert Pinhole Starlight 2MP 2.8mm Wizmind Network Camera Kit 1/2.8" CMOS , H.264 +/H.265+ , WDR 120dB , Motion Detection, Privacy Masking, Scene Changing, Audio Detection , RJ-45 (10/100 Base-T)

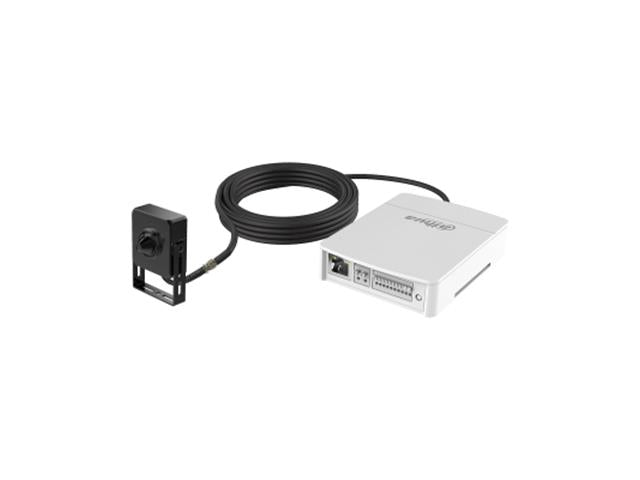

2MP Covert Pinhole WizMind Network Camera-KIT

Overview

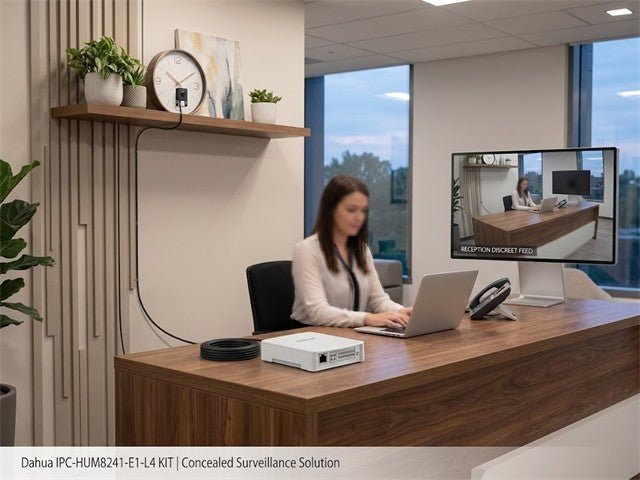

With deep learning algorithm, the separate pinhole camera supports functions such as perimeter protection and face recognition. Working with different types of lenses, the camera is widely applied to hidden or small scenes such as banks and advertising screens, meeting requirements in different installation scenes.

Feature(s)

  • Starlight 2MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images.
  • Outputs max. 2MP (1920 × 1080)@25/30 fps.
  • H.265 codec, high compression ratio, and ultra-low bit rate.
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and face detection.
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
  • 12V DC/PoE power supply facilitates installation.
  • Power on after connecting the lens to the back-end device; otherwise the device might be damaged.

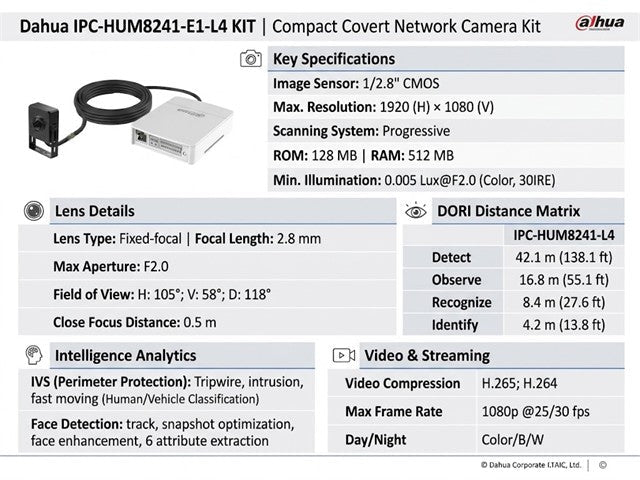

Specifications

Camera

  • Image Sensor : 1/2.8" CMOS
  • Max. Resolution : 1920 (H) × 1080 (V)
  • ROM : 128 MB
  • RAM : 512 MB
  • Scanning System : Progressive
  • Min. Illumination:
    • 0.005 Lux@F2.0 (Color,30 IRE)
    • 0 lux (Illuminator on)
  • S/N Ratio : > 56 dB

Lens

  • Lens Type : Fixed-focal
  • Lens Mount : M12
  • Focal Length : 2.8 mm
  • Max. Aperture : 2.8 mm:F2.0
  • Field of View :
  • Horizontal: 105°;
  • Vertical: 58°;
  • Diagonal: 118°
  • Iris Control : Fixed
  • Close Focus Distance : 0.5m

DORI Distance

  • Lens : IPC-HUM8241-L4
  • Detect :  42.1 m (138.1 ft)
  • Observe : 16.8 m (55.1 ft)
  • Recognize : 8.4 m (27.6 ft)
  • Identify : 4.2 m (13.8 ft)

Intelligence

  • IVS (Perimeter Protection) : Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection
    of vehicle and human); loitering detection, people gathering, and parking detection
  • Face Detection : Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face
    exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and
    8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face
    or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting
  • Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event
    videos

Video

  • Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
  • Smart Codec Smart : H.265+; Smart H.264+
  • Video Frame Rate
    • Main stream : 1920 × 1080 @25/30 fps
    • Sub stream : 704 × 576 @25 fps; 704 × 480 @30 fps
    • Third stream : 1920 × 1080 @25/30 fps
  • Stream Capability : 3 streams
  • Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
    × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
    (352 × 288/352 × 240)
  • Bit Rate Control : CBR/VBR
  • Video Bit Rate
    • H.264: 3 kbps–20480 kbps
    • H.265: 3 kbps–20480 kbps
  • Day/Night : Color/B/W
  • BLC : Yes
  • HLC : Yes
  • WDR : 120 dB
  • White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control : Manual; auto
  • Noise Reduction : 3D NR
  • Motion Detection : OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI) : Yes (4 areas)
  • Defog : Yes
  • Smart Illumination : Yes
  • Image Rotation : 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower)
  • Mirror : Yes
  • Privacy Masking : 4 areas

Audio

  • Built-in MIC : Yes
  • Built-in Speaker : Yes
  • Audio Compression : G.711a; G.711Mu

Alarm

  • Alarm Event : No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion
    detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking
    detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception.

Network

  • Network Port : RJ-45 (10/100 Base-T)
  • SDK and API : Yes
  • Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
  • Cyber Security : Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
  • Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
  • Storage : FTP; SFTP; Micro SD card (Support max. 256 G); NAS
  • Browse
    • IE: IE8, IE9, and IE11
    • Chrome
    • Firefox
  • Management Software : Smart PSS; DSS; DMSS
  • Mobile Client iOS; Android

Port

  • Audio Input : 1 channel (3.5 mm JACK port)
  • Audio Output : 1 channel (3.5 mm JACK port)
  • Alarm Input : 2 channels in: 5 mA 3V–5V DC
  • Alarm Output : 2 channels out: 1,000 mA 30V DC/500 mA 50V DC

Power

  • Power Supply : 12V DC/PoE (802.3af)
  • Power Consumption :
    • Basic: 2.3W (12V DC); 2.8W (PoE)
    • Max. (Intelligence + WDR): 3.7W (12V DC); 4.5W (PoE)

Environment

  • Operating Temperature : –40°C to +60°C (–40°F to 140°F)
  • Operating Humidity : ≤ 95%
  • Storage Temperature : –40°C to +60°C (–40°F to 140°F)

Structure

  • Casing : Metal
  • Product Dimensions :
    • E1: 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94")
    • L4: 35 mm × 35 mm × 26.7 mm (1.38" × 1.38" × 1.05")
  • Net Weight : 210 g (0.5 lb)
  • Gross Weight : 376 g (0.8 lb)

Downloads

Additional Information

Device Camera-KIT
Type 2MP | Covert Pinhole | WizMind | Network
