Dahua NVR 8 Channel Compact 1U 1HDD 8PoE Network Video Recorder , 1xSATA Port MAX16TB , USB , HDMI , VGA , 1XRJ45 Port 10/100Mbs , 8 × PoE ports, 10/100 Mbps , Smart H.265+/H.265 , Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

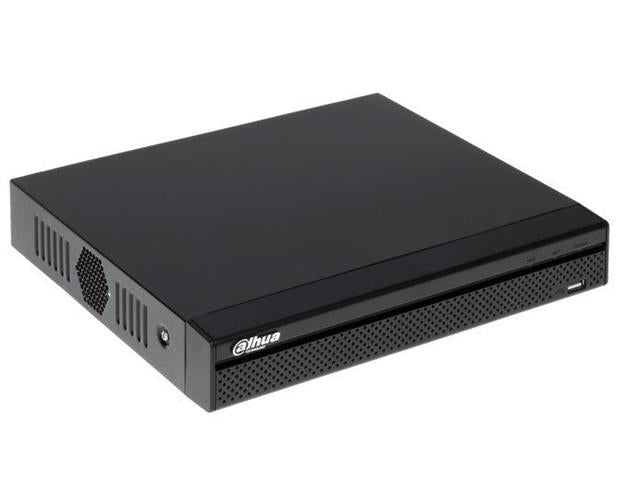

8 Channel 8PoE Network Video Recorder
Overview
Dahua Lite series NVR is easy to install, cost effective and compatible
with a wide variety of third-party devices, providing a great solution
for small and medium surveillance systems. It is ideal for home safety,
supermarkets, warehouses, educational institutions, and financial
institutions.
Feature(s)
- Smart H.265+/H.265/Smart H.264+/H.264 decoding format
- Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
- AI by camera: perimeter protection,and SMD Plus
- Connected to the third-party network cameras
- Security baseline 2.1

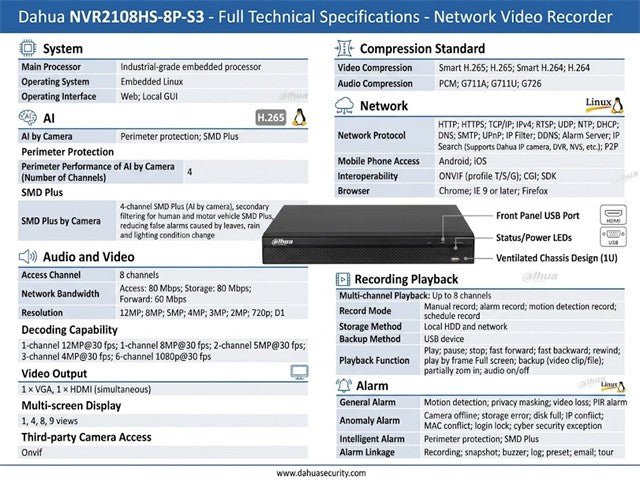

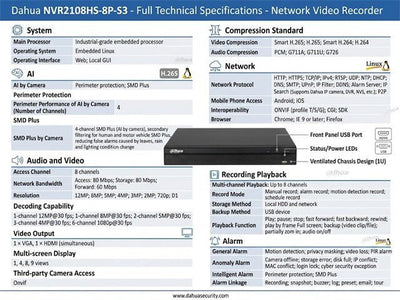

Specifications
System
- Main Processor : Industrial-grade embedded processor
- Operating System : Embedded Linux
- Operating Interface : Web; Local GUI
AI
- AI by Camera : Perimeter protection; SMD Plus
Perimeter Protection
- Perimeter Performance of AI by Camera (Number of Channels) : 4
SMD Plus
- SMD Plus by Camera : 4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
- Access Channel : 8 channels
- Network Bandwidth : Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
- Resolution : 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
- Decoding Capability
- 1-channel 12MP@30 fps; 1-channel 8MP@30 fps;
- 2-channel 5MP@30 fps; 3-channel 4MP@30 fps;
- 6-channel 1080p@30 fps
- Video Output 1 × VGA, 1 × HDMI (simultaneous)
- Multi-screen Display 1, 4, 8, 9 views
- Third-party Camera Access : Onvif
Compression Standard
- Video Compression : Smart H.265; H.265; Smart H.264; H.264
- Audio Compression : PCM; G711A; G711U; G726
Network
- Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter;
- DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P
- Mobile Phone Access : Android; iOS
- Interoperability : ONVIF (profile T/S/G); CGI; SDK
- Browser : Chrome; IE 9 or later; Firefox
Recording Playback
- Multi-channel Playback : Up to 8 channels
- Record Mode : Manual record; alarm record; motion detection record; schedule record
- Storage Method : Local HDD and network
- Backup Method : USB device
- Playback Function
- Play; pause; stop; fast forward; fast backward; rewind; play by frame
- Full screen; backup (video clip/file); partially zom in; audio on/off
Alarm
- General Alarm : Motion detection; privacy masking; video loss; PIR alarm
- Anomaly Alarm : Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
- Intelligent Alarm : Perimeter protection; SMD Plus
- Alarm Linkage : Recording; snapshot; buzzer; log; preset; email; tour
Port
- Audio Input : 1
- Audio Output : 1
- HDD Interface : 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment
- temperature
- USB : 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI : 1
- VGA : 1
- Network Port : 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
- PoE Port : 8 × PoE ports, 10/100 Mbps
General
- Power Supply : 48/53 VDC, 2/1.8 A
- Power Consumption
- Total output of NVR is ≤ 10 W (without HDD)
- Total output power of PoE is 72 W, the maximum output power of asingle port is 25.5 W
- Net Weight : 0.89 kg (1.95 lb)
- Gross Weight : 1.94 kg (4.28 lb)
- Product Dimensions : 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)
- Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity : 10%–93% (RH)
- Installation : Rack or desktop
