Dahua Outdoor Network Wi-Fi Dual-Lens Pan & Tilt Camera 5+5MP, Camera:2.8mm Lens 30m IR, Vehicle/Human & Motion Detection, H2.65, DWDR, Built-in MIC & Speaker, PT:6mm Lens 50m IR, Pan: 0° ~352°, Tilt:0°~90°, RJ45 (10/100 Base-T), 12VDC, IP66
Wi-Fi Dual-Lens Pan & Tilt Camera
Overview
The Picoo Dual Series, which is under the Dahua Wireless series, consists of cameras equipped with both fixed lens and PT lens. This unique combination allows for simultaneous live monitoring of two areas, providing coverage from multiple angles. Leveraging its dual lenses, the camera performs smart detection using advanced functions like AI human and vehicle detection, effectively minimizing false alarms. Additionally, with the assistance of the PT lens, the camera has the capability to automatically track moving targets. The camera also triggers sound and light alarms upon detecting an intrusion, promptly sending notifications to the mobile client to ensure you remain up to date regardless of your location. These cameras are widely utilized in small-scale scenes such as shops and restaurants.

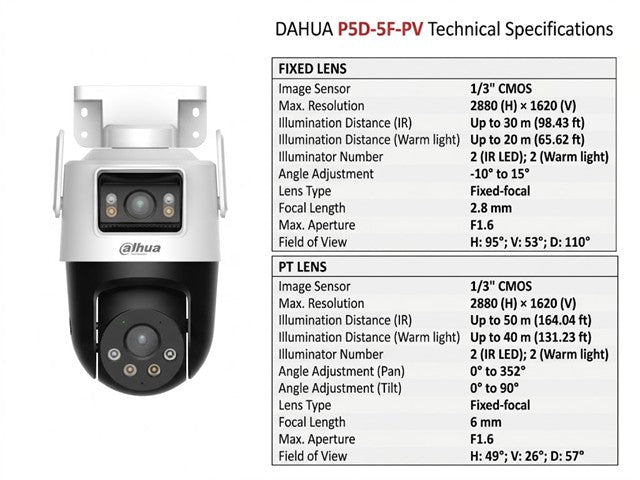

Specifications
|
Camera
|
|
Fixed Lens
|
|
Image Sensor
|
1/3" CMOS
|
|
Max. Resolution
|
2880 (H) × 1620 (V)
|
|
Illumination Distance
|
Up to 30 m (98.43 ft) (IR)
Up to 20 m (65.62 ft) (Warm light)
|
|
Illuminator Number
|
2 (IR LED); 2 (Warm light)
|
|
Angle Adjustment
|
-10° to 15°
|
|
Lens Type
|
Fixed-focal
|
|
Focal Length
|
2.8 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
H: 95°; V: 53°; D: 110°
|
|
PT Lens
|
|
Image Sensor
|
1/3" CMOS
|
|
Max. Resolution
|
2880 (H) × 1620 (V)
|
|
Illumination Distance
|
Up to 50 m (164.04 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
|
|
Illuminator Number
|
2 (IR LED); 2 (Warm light)
|
|
Angle Adjustment
|
Pan: 0° to 352°;
Tilt: 0° to 90°
|
|
Lens Type
|
Fixed-focal
|
|
Focal Length
|
6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
H: 49°; V: 26°; D: 57°
|
|
Intelligence
|
|
Human Detection
|
Yes
|
|
Vehicle Detection
|
Yes
|
|
Audio and Video
|
|
Video Compression
|
H.265
|
|
Video Frame Rate
|
Main stream: 2880 × 1620@15 fps
sub stream: 640 × 360@15 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Video Bit Rate
|
H.265: 768 kbps–4096 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
WDR
|
DWDR
|
|
Motion Detection
|
Yes
|
|
Image Rotation
|
0°/180°
|
|
Built-in MIC
|
Yes, built-in Mic
|
|
Built-in Speaker
|
Yes, built-in speaker
|
|
Audio Compression
|
G.711a
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
Wi-Fi
|
IEEE 802.11b/g/n/ax 2.412-2.472
GHz,2.4G,≤20dBm@2400-2483.5MHz
|
|
Wi-Fi Pairing
|
Bluetooth pairing
|
|
Storage
|
Micro SD card (support max. 256 GB)
|
|
Management Software
|
DMSS
|
|
Mobile Client
|
iOS;Android
|
|
General
|
|
Certifications
|
CE
|
|
Power Supply
|
12 VDC
|
|
Power Consumption
|
Basic: 2.6 W
Max.: 10.6 W (pulling stream+ IR + siren and light active deterrence)
|
|
Operating Temperature
|
–20 °C to +50 °C (–4 °F to +122 °F)
|
|
Operating Humidity
|
≤95% (RH), non-condensing
|
|
Protection
|
IP66
|
|
Casing Material
|
Plastic
|
|
Product Dimensions
|
159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H)
|
|
Net Weight
|
585 g (1.29 lb)
|
Downloads
Additional Information
| Device |
Camera |
| Type |
Wi-Fi | Dual-Lens | Pan & Tilt |
Enhance your security with the DHA P5D-5F-PV Dual-Lens Pan & Tilt Camera. Featuring 5MP resolution, advanced AI detection, and 30m IR for clear night vision, this versatile camera ensures comprehensive monitoring of your property. With real-time alerts and dual-area coverage, you can enjoy peace of mind knowing that your space is protected from intrusions, day or night.
