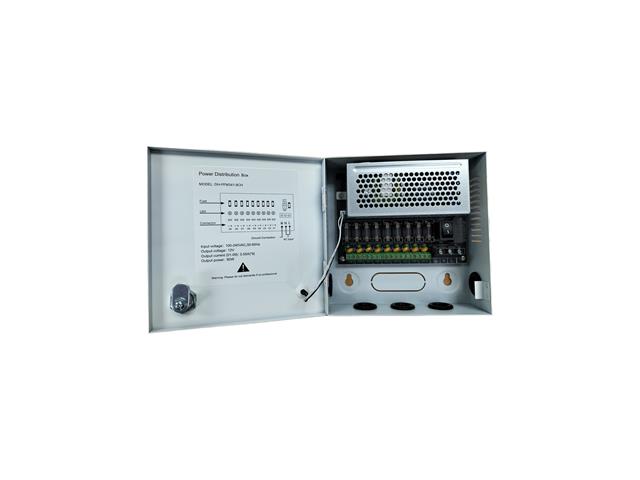

DHA PFM341-9CH

SKU: DHA PFM341-9CH

BRAND: Dahua


Dahua 9 Channel CCTV Distributed Power Supply, I/P Range:AC90~264V, O/P:9x12VDC, Max Output:5A, Internal ON/OFF Power Switch, Output Protection:9 Replacement Fuses, Max. Per Output 2.5A, 165x165x50mm, 0.9kg

9 Channel CCTV Distributed Power Supply

Feature

  • 9 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access;
  • Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation;
  • High quality and reliability: pass 100% quality examination and 3 months high temperature aging test;
  • With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability;
  • Professional wall-mounted installation with reserved outlet holes, convenient and flexible.

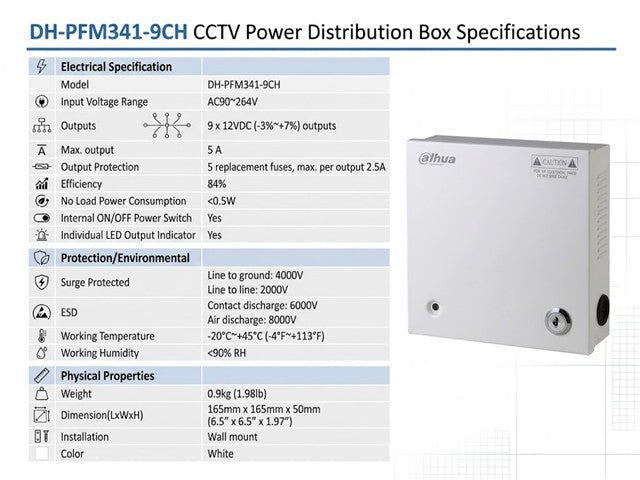

Specifications

Electrical Specification

  • Model : DH-PFM341-9CH
  • Input Voltage Range : AC90~264V
  • Outputs : 9 x 12VDC (-3%~+7%) outputs
  • Max. output : 5 A
  • Output Protection : 5 replacement fuses, max. per output 2.5A
  • Efficiency : 84%
  • No Load Power Consumption : <0.5W
  • Internal ON/OFF Power Switch : Yes
  • Individual LED Output Indicator : Yes

Protection/Environmental

  • Surge Protected
    • Line to ground: 4000V
    • Line to line: 2000V
  • ESD
    • Contact discharge: 6000V
    • Air discharge: 8000V
  • Working Temperature : -20°C~+45°C(-4°F~+113°F)
  • Working Humidity : <90% RH

Physical Properties

  • Weight : 0.9kg(1.98lb)
  • Dimension(LxWxH) : 165mmx165mmx50mm(6.5”x6.5”x1.97”)
  • Installation : Wall mount
  • Color : White

Downloads

Additional Information

Device Power Supply
Type 9 Channel | CCTV Distributed
