• Integrated 5 GHz (2x2) MIMO radio
• Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
• High performance and stability
• IP-66 standards rated enclosure
• Improved noise immunity
• TDMA ensures reliable communication
• Powerful OS
• Dual firmware
• Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
• Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)

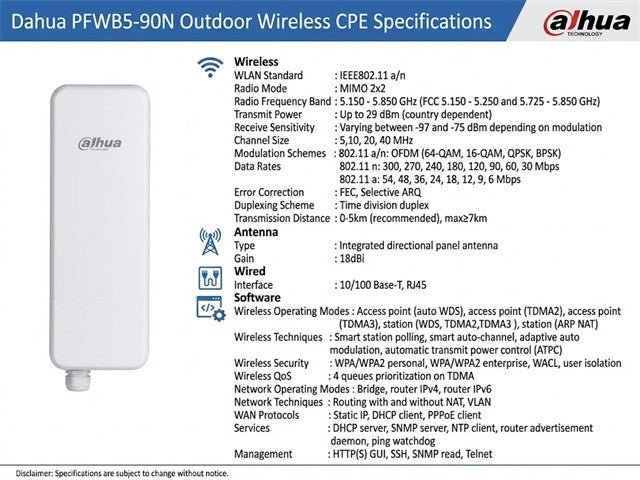

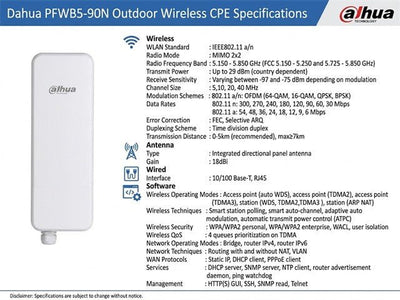

Wireless

• WLAN Standard : IEEE802.11 a/n
• Radio Mode : MIMO 2x2
• Radio Frequency Band : 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
• Transmit Power : Up to 29 dBm (country dependent)
• Receive Sensitivity : Varying between -97 and -75 dBm depending on modulation
• Channel Size : 5,10, 20, 40 MHz
• Modulation Schemes : 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
• Data Rates 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps, 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
• Error Correction : FEC, Selective ARQ
• Duplexing Scheme : Time division duplex
• Transmission Distance : 0-5km (recommended), max≥7km

Antenna

• Type : Integrated directional panel antenna
• Gain : 18dBi

Wired

• Interface : 10/100 Base-T, RJ45

Software

• Wireless Operating Modes : Access point (auto WDS), access point (TDMA2), access point (TDMA3), station (WDS, TDMA2,TDMA3 ), station (ARP NAT)
• Wireless Techniques : Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)
• Wireless Security : WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
• Wireless QoS : 4 queues prioritization on TDMA
• Network Operating Modes : Bridge, router IPv4, router IPv6
• Network Techniques : Routing with and without NAT, VLAN
• WAN Protocols : Static IP, DHCP client, PPPoE client
• Services : DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
• Management HTTP(S) GUI, SSH, SNMP read, Telnet
• Tools : Site survey, link test, antenna alignment, spectrum analyzer, ping & trace

Physical

• Dimensions : 383 mm (Length)× 100mm (width )× 98mm (height )
• Weight : 520 g
• Mounting : Combination wall / pole mount included

Power

• Power Supply : 12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)
• Power Source : 100 – 240V AC
• Power Consumption (max) : 4.5W

Environmental

• Operating Temperature  -30°C ~ +70°C
• Humidity : 0 ~ 90 % (non-condensing)

Management

• System Monitoring : SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

• Certification : FCC/CE

Internal Antenna

• Frequency Range : 5.1 – 5.9 GHz
• Gain : 18 dBi
• Polarization : Dual linear
• Cross-pol Isolation : 24dBi
• VSWR : <1.7
• Azimuth Beam Width (H pol) : 90°
• Azimuth Beam Width (V pol) : 90°
• Elevation Beam Width : 20°

1. Datasheet - DHA PFWB5-90N
