Dahua Indoor 7Inch TFT IP Intercom Monitor only White, Res:1024×600, H.264, Built-in Speaker 1.5W, Embedded Linux OS 1XRJ45, 119.6×221.5×21.5mm, PSU 12V1A, 0.35kg

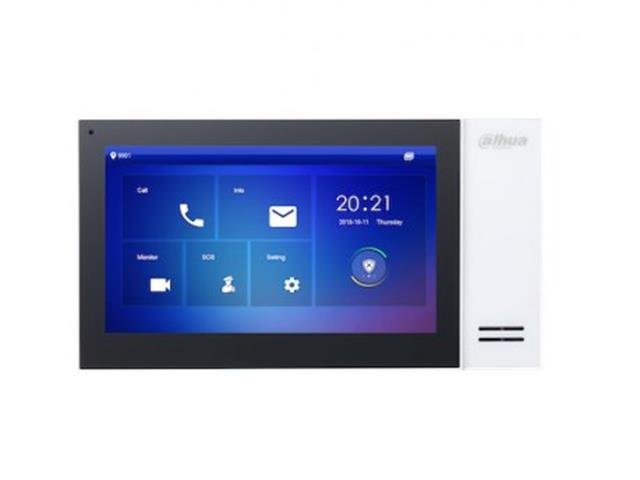

7Inch TFT IP Intercom Monitor
Features
- 7" TFT Capacitive touch screen, 1024 x 600
- IPC surveillance
- Alarm integration
- High performance & Cost-effective
- Embedded 8GB SD card
- Support standard PoE

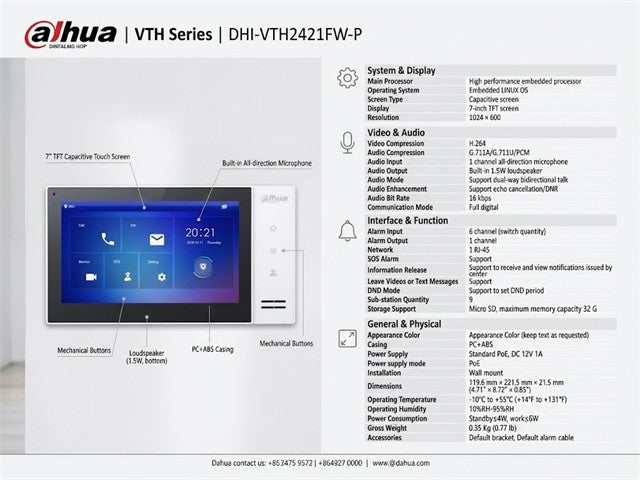

Specifications
- Technical Specification
- Main Processor : High performace embedded processor
- Operating System : Embedded LINUX OS
- Screen Type : Capacitive screen
- Display : 7-inch TFT screen
- Resolution : 1024 × 600
- Video Compression : H.264
- Audio Compression : G.711A/G.711U/PCM
- Audio Input : 1 channel all-direction microphone
- Audio Output : Built-in 1.5W loudspeaker
- Audio Mode : Support dual-way bidirectional talk
- Audio Enhancement : Support echo cancellation/DNR
- Audio Bit Rate : 16 kbps
- Communication Mode Full digital
- Information Release : Support to receive and view notifications issued by center
- Leave Videos or Text Messages : Support
- DND Mode : Support to set DND period
- Sub-station Quantity : 9
- VTH2 Series | DHI-VTH2421FW-P/DHI-VTH2421FB-P
- Alarm Input : 6 channel (switch quantity)
- Alarm Output : 1 channel
- Network : 1 RJ-45
- SOS Alarm : Support
- Casing : PC+ABS
- Appearance Color : Appearance Color
- Power Supply : Standard PoE, C 12V 1A
- Installation : Wall mount
- Accessories : Default bracket, Default alarm cable
- Dimensions : 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85")
- Operating Temperature : -10°C to +55°C (+14°F to +131°F)
- Operating Humidity : 10%RH-95%RH
- Power Consumption ; Standby≤4W, work≤6W
- Gross Weight : 0.35 Kg (0.77 lb)
- Power supply mode : PoE
- Storage Support Micro SD, maximum memory capacity 32 G, standard memory capacity
Downloads
Additional Information
| Device |
Monitor |
| Type |
7Inch | TFT | IP | Intercom |
