System
|
|
Main Processor
|
Industrial-grade processor
|
|
Operating System
|
Embedded Linux
|
|
Operating Interface
|
Web; Local GUI
|
|
SMD
|
|
SMD Plus by Recorder
|
8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
|
|
SMD by Camera
|
10 channels
|
|
Audio and Video
|
|
Analog Camera Input
|
8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
|
|
Camera Input
|
1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
|
|
IP Camera Input
|
Up to 10 channels of IPC access
2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.
|
|
Encoding Capacity
|
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
|
|
Dual-stream
|
Yes
|
|
Video Bit Rate
|
32 kbps–4096 kbps
|
|
Audio Sampling
|
8 kHz, 16 bit
|
|
Audio Bit Rate
|
64 kbps
|
|
Video Output
|
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
|
Multi-screen Display
|
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
|
|
Third-party Camera Access
|
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
|
|
Compression Standard
|
|
Video Compression
|
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
|
|
Audio Compression
|
G.711a; G.711u; PCM
|
|
Network
|
|
Network Protocol
|
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;
SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
|
|
Mobile Phone Access
|
iOS; Android
|
|
Interoperability
|
ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
|
|
Browser
|
Chrome; IE; Safari; Edge; Firefox
|
|
Recording Playback
|
|
Record Mode
|
General; alarm; motion detection
|
|
Recording Playback
|
1/4/9
|
|
Backup Method
|
USB device and network
|
|
Playback Mode
|
Instant playback; general playback; event playback; tag playback; smart playback
|
|
Alarm
|
|
General Alarm
|
Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
|
|
Anomaly Alarm
|
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
|
|
Intelligent Alarm
|
SMD Plus
|
|
Alarm Linkage
|
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
|
|

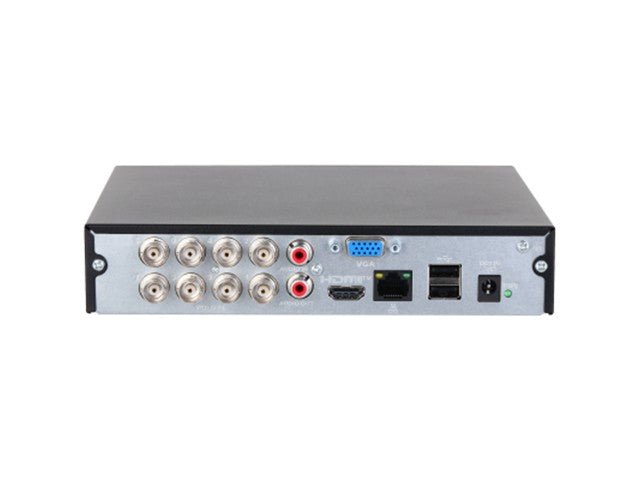

Ports
|
|
Audio Input
|
1-channel RCA
8-channel BNC (Coaxial Audio)
|
|
Audio Output
|
1-channel RCA
|
|
Two-way Talk
|
Coaxial two-way talk: 8-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
|
|
Disk Interface
|
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
|
|
USB
|
2 (2 rear USB 2.0 ports)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network Port
|
1 (10/100 Mbps Ethernet port, RJ-45)
|
|
General
|
|
Power Supply
|
12 VDC, 1.5 A
|
|
Power Consumption
|
<7 W (without HDD)
|
|
Net Weight
|
0.57 kg (1.26 lb)
|
|
Gross Weight
|
0.97 kg (2.14 lb)
|
|
Product Dimensions
|
197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63") (W × D × H)
|
|
Packaging Dimensions
|
332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)
|
|
Operating Temperature
|
–10 °C to +45 °C (+14 °F to +113 °F)
|
|
Storage Temperature
|
–20 °C to +60 °C (–4 °F to +140 °F)
|
|
Operating Humidity
|
10%–90% (RH), non-condensing
|
|
Installation
|
Desktop
|
|
Certifications
|
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
|
