DMR-02T

SKU: DMR-02T

BRAND: Communica

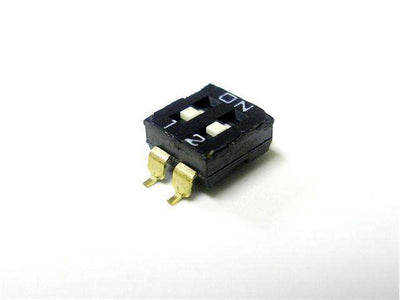

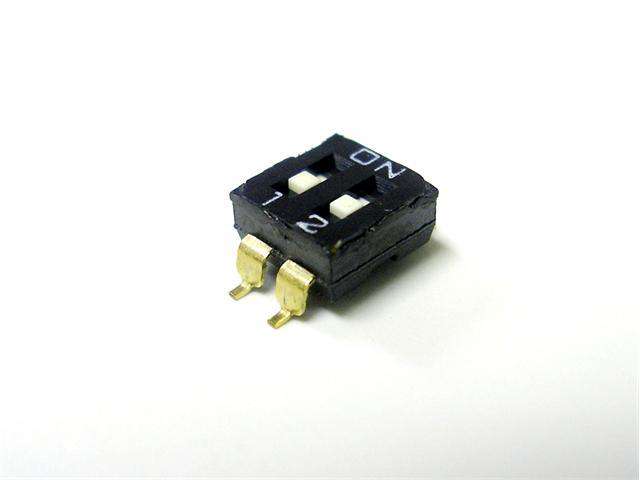

SMT Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-SMD Gull Wing

Overview

Features

 Top Tape Sealed

Specification

Transition Style Latching
Actuator Style Recessed -Actuator
Actuating Force 1000gf max
Termination PCB-SMD Gull Wing
Switch Circuit 1A-SPST(NO)
Electrical Rating 25mA-24VDC
Electrical Life 2000 Operation Cycles
No.of Poles/Pins 2Pos
Base Colour Black
Actuator Colour White
Size Pitch : 2,54mm
Mechanical Life 2000 Operations
Stroke 1.0mm
Temperature -20°C ~ +85°C
