DS18B20

SKU: DS18B20

BRAND: Communica

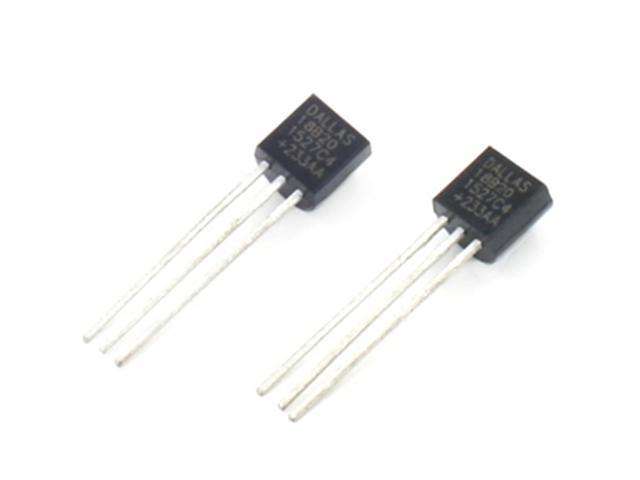

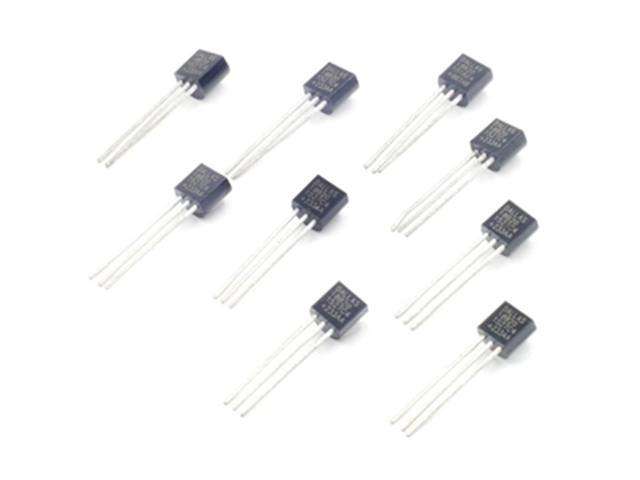

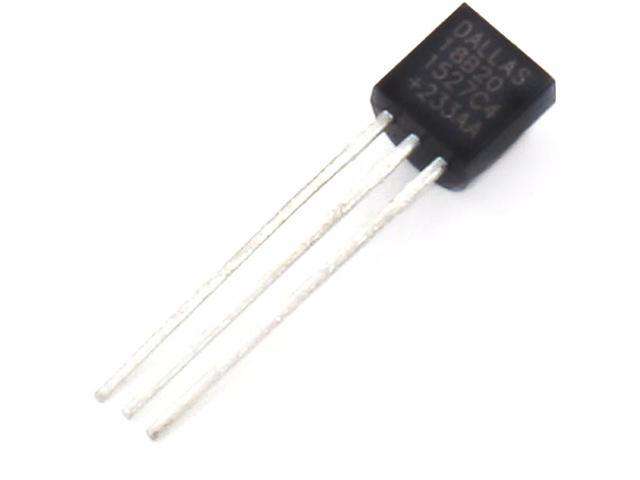

DS18B20 Temperature Sensor only

Overview

Features



It is a very good choice to measure temperature due to its ease of use and accuracy ( 9-12 bit)

The DS18B20 has also an alarm function where you can program upper and lower values

  • Input Voltage : 3-5v
  • Accuracy : ±0.5°C
  • Temperatures Measurement Range :–55°C ~ +125°C
  • Power Supply Current : 1mA/3-5.5V
  • Resolution : 12 bits
  • Encapsulated Type : TO-92
  • Pins: 3 (1 digital, GND, Vcc)
  • Output Current : 4mA
  • Surface Mounting Type : Through-hole
