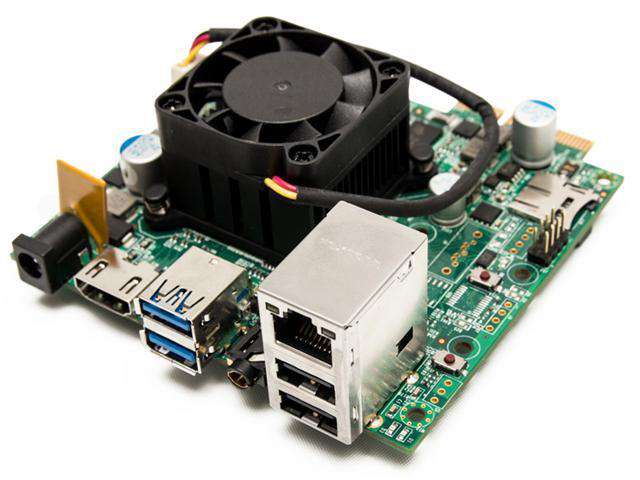

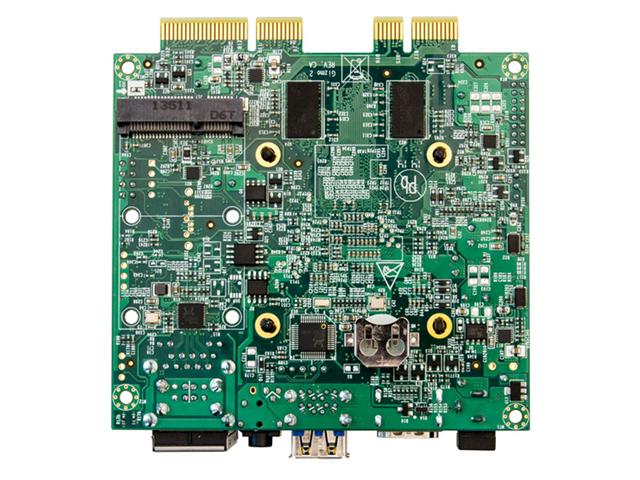

EMB AMD GIZMO 2 -X86 DEV BOARD

Gizmo 2 is the second generation open source x86 development board presented by GizmoSphere. Gizmo 2 provides the power of a high performance computer and the I/O capabilities of a microcontroller through the use of an AMD Embedded G-Series System-on-Chip (SOC). The board includes the AMD GX-210HA dual-core processor, combined on a single die with AMD Radeon HD 8210E discrete-class graphics, providing 85 GFLOPS performance while drawing only 9 watts TDP

• AMD G-Series SOC
• 1GB DDR3-1600 SDRAM

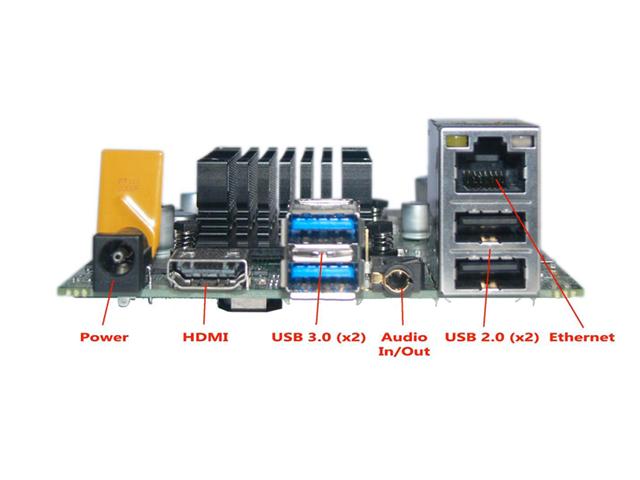

• HDMI Video/Audio Output
• 85 GFLOPS performance
• HD Audio In/Out
• mSATA/mini PCIe Connector
• microSD Card Slot
• Onboard Gigabit Ethernet
• USB 3(2) and 2(2) Connectors
• AMD Debug Header
• High-speed and Low-speed Special Features Card Edge Connectors
• 4" x 4" Form Factor
• Support for DirectX 11.1, OpenGL 4.2x and OpenCL™ 1.2, enabling parallel processing and high-performance graphics processing
• Supported operating systems include Windows Embedded 8 and Linux

Block Diagram - AMD GIZMO2

User-Guide - Gizmo-2

Schematic - AMD Gizmo 2

Product Brief - Gizmo2

Datasheet - AMDGSeriesSOC

Quick Start Guide - GIZMO 2
