ET UNIVERSAL TIMER

SKU: ET UNIVERSAL TIMER

BRAND: Et

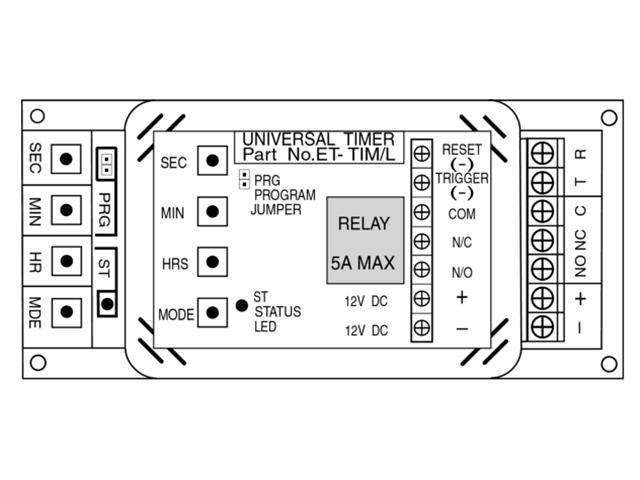

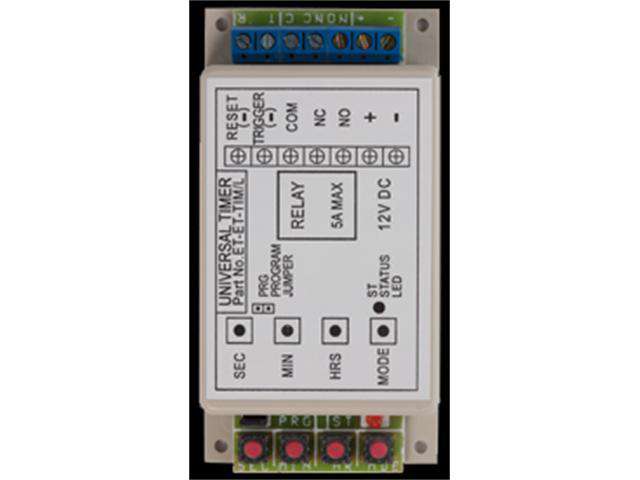

Control Card Universal Timer

Overview

Features



  • Seconds (1 – 60) sec, max 255 sec
  • Minutes (1 – 60) min, max 255 min
  • Hours (1 – 60) hrs, max 255 hrs
  • Trigger timer
  • Reset timer
  • Trigger relay on time mode
  • Trigger delay time mode
  • Latch mode
  • Flip/flop-repeating mode
  • Power trigger mode
  • Combination of any mode

Specification



  • Voltage Supply : 12V DC
  • Current Consumed | 20 mA Standby and 80 mA with relay ON
  • Time: Accuracy | +/- 1%
  • Seconds (sec) : 0.01 sec.
  • Minutes (min) : 1 sec.
  • Hours (hrs.) : 1 min
  • Relay Contacts Rating : 5 A/250V AC
