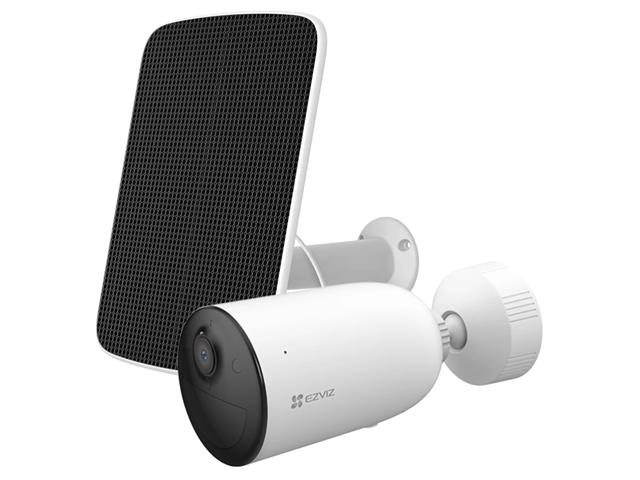

EZVIZ Smart Home Battery Camera & Solar Panel Kit - Camera: 2MP 1/2.9” CMOS Sensor 2.8mm Lens, IR Distance:15M, WIFI, FREQ2.4 GHz~2.4835GHz, Storage:UP TO 256GB, Battery:5200mAh, PSU:5V2A - Solar Panel:4.2W 6V @ 700ma, OCV:7.2V SCC:740ma, IP65
Smart Home Battery Camera
Overview
The EZVIZ CB3 is an extremely easy-to-use camera that delivers powerful
performance for outdoor security. It runs steadily up to 120 days on one
full battery charge, and can basically go anywhere near your home without
complex wiring or expensive installation fees. It is a go to, accessible option
for any family that needs an extra layer of protection.
Specifications
Camera
- Image Sensor : 1/2.9” 2-Megapixel Progressive Scan CMOS Sensor
- Minimum Illumination : 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
- Shutter Speed : Self-adaptive shutter
- Day & Night IR-cut filter with auto-switching
- Lens : 2.8mm @ F2.0 Viewing angle: 128° (Diagonal), 108°(Horizontal), 56°(Vertical)
- DNR : 3D DNR
- Night Vision Distance : IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
- Max Resolution : 1080p / 2MP, 1920 x 1080
- Frame Rate : Max. 15fps; Self-Adaptive during network transmission
- Video Compression : H.265 / H.264
- Video Bit Rate : Full HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit Rate : Self-Adaptive
- Max. Bitrate : 1 Mbps
Network
- Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
- Frequency Range : 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth : Supports 20 MHz
- Security : 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
- Transmission Rate : 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
- Wi-Fi Pairing : AP pairing
- Protocol : EZVIZ Cloud Proprietary Protocol
- Interface Protocol : EZVIZ Cloud Proprietary Protocol
- Minimum Network Requirement : 2 Mbps
Function
- Smart Alarm : Smart Human Motion Detection
- Two-way Talk : Supports
- General Function : Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
- Local Storage : Supports microSD card (Up to 256G)
- Cloud Storage : Supports EZVIZ CloudPlay storage (subscription required)
General
- Operating Conditions : -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)
- IP Grade : Weatherproof Design
- Packaging Dimensions : 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
- Battery Capacity : 5200 mAh
- Power Consumption : Max. 10W
- Power Supply : DC 5V / 2A (Purchased Separately)
- Product Dimensions : 105.9 × 62.8 × 62.8 mm (4.17 × 2.47 × 2.47 inch)
- Weight : 480g (16.93 oz)
