Camera Parameters
|
|
Image Sensor
|
1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
|
|
Lens
|
Upper camera: 2.3mm @F/2.2 ,
diagonal field of view 162°
Bottom camera: 2.3mm @F/2.2 ,
diagonal field of view 155°
|
|
Day & Night
|
ICR infrared filter type ( Max: 6 meters)
|
|
Video Parameters
|
|
Max. Resolution
|
Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080)
|
|
DNR
|
2D / 3D DNR
|
|
Video Compression
|
H.265 / H.264
|
|
Frame Rate
|
15fps.Fixed frame rate
|
|
PIR Sensor
|
|
Sensing Angle
|
120°
|
|
Sensing Distance
|
Max. 5 m (16.4 ft)
|
|
Sensitivity
|
Adjustable (High: 5 meter, Medium: 4 meter,and Low: up to 3 meter)
|
|
Storage
|
|
Local Storage
|
Built-in 32GB eMMC
|
|
Cloud Storage
|
EZVIZ CloudPlay storage
|
|
Interface
|
|
Audio Input
|
Built-in high-sensitivity microphone
|
|
Audio Output
|
Built-in high-power speaker
|
|
Button
|
Doorbell button with electronic doorbell
|
|
Reset button
|
Yes
|
|
Network Parameters
|
|
Interface Protocol
|
EZVIZ Cloud Proprietary Protocol
|
|
Protocol
|
EZVIZ Cloud Proprietary Protocol
|
|
Wi-Fi Parameters
|
|
Wi-Fi Standard
|
IEEE802.11b, 802.11g, 802.11n
|
|
Frequency Range
|
2.4 GHz ~ 2.4835 GHz
|
|
Channel Bandwidth
|
Supports 20MHz
|
|
Security
|
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
|
|
Transmission Rate
|
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
|
|
Function
|
|
Intelligent Alarm
|
AI-Powered Human Shape Detection, Package Detection
|
|
Tamper Alarm
|
Sound and light anti-dismantling alarm
(Supports sending alerts via EZVIZ App)
|
|
Video Intercom
|
Two-Way talk
|
|
General
|
|
Operation Conditions
|
-20°C to 50°C, humidity 95% or less (non-condensing)
|
|
IP Grade
|
IP65
|
|
Size
|
166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch)
|
|
Battery Capacity
|
5200 mAh rechargeable lithium battery
|
|
Power Supply
|
8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel
|
|
Power Consumption
|
3W MAX
|
|

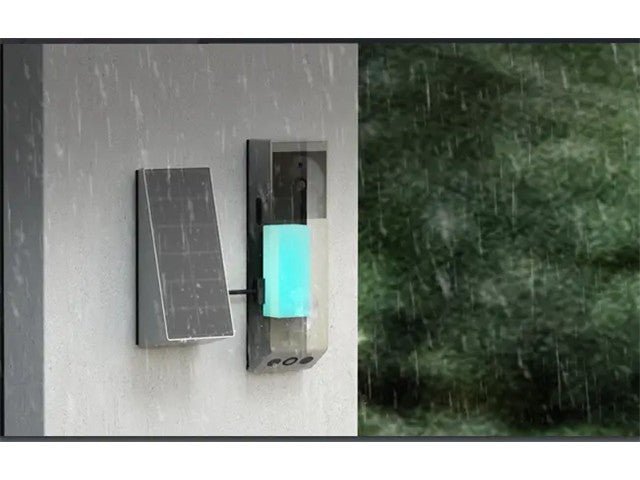

Solar Panel
|
|
Performance Parameter
|
|
Max. Power Voltage
|
8.1V
|
|
Max. Power Current
|
240mA
|
|
Max. Power
|
1.2W
|
|
Operating Temperature
|
-20°C to 50°C
|
|
Size
|
126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)
|
|
IP Grade
|
IP65
|
|
General
|
|
Net Weight
|
Doorbell: 276 g (9.73 oz)
|
|
Weight with Package
|
650 g (22.93 oz)
|
|
In the box
|
|
In the box
|

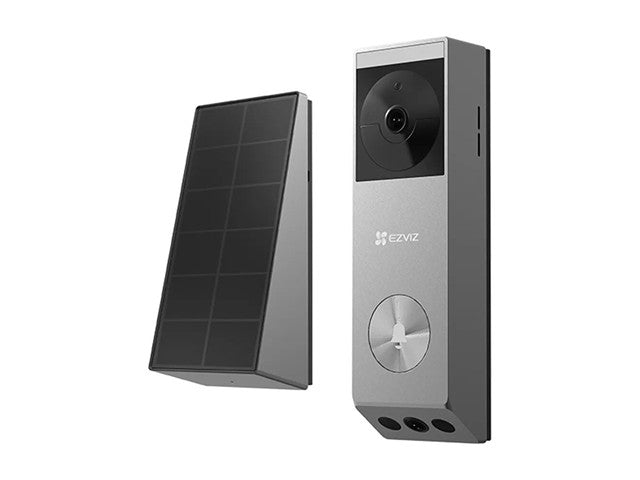

- EP3x Pro Video Doorbell
|
|
- Mounting Bracket for Doorbell
|
|
- Inclined Mounting Bracket
|
|
- Drill Template for Doorbell
|
|
- Solar Panel
|
|
- Drill Template for Solar Panel
|
|
- Power Cable
|
|
- Pin
|
|
- Screw Kit ×3
|
|
- U-shaped Wire ×2
|
|
- Wire Connector ×2
|
|
- Regulatory Information ×2
|
|
- Quick Start Guide
|
