Camera
|
|
Image Sensor
|
1/2.7”Progressive Scan CMOS
|
|
Minimum Illumination
|
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
|
|

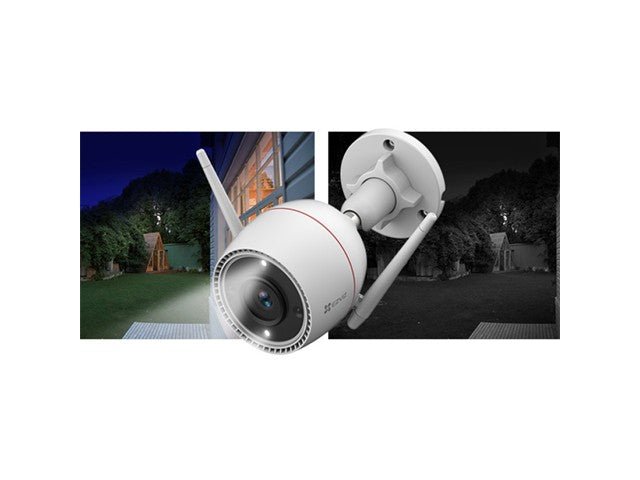

IR Night Vision Distance
|
Up to 98 ft / 30 m
|
|
Shutter Speed
|
Self-adaptive shutter
|
|
Lens
|
4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
|
|
Lens Mount
|
M12
|
|
DNR
|
3D DNR
|
|
WDR
|
Digital WDR
|
|
Day / Night Switch
|
IR-Cut filter with auto-switching
|
|
Video & Audio
|
|
Max. Resolution
|
1080p, 1920 × 1080
|
|
Frame Rate
|
Max: 30fps; Self-Adaptive during network transmission
|
|
Video Compression
|
H.265 / H.264
|
|
Video Bit Rate
|
Full HD; HD; Standard. Adaptive bit rate.
|
|
Audio Bit Rate
|
Self-Adaptive
|
|
Max. Bitrate
|
1 Mbps
|
|
Network
|
|
Wi-Fi Standard
|
IEEE802.11b, 802.11g, 802.11n
|
|
Frequency Range
|
2.4 GHz ~ 2.4835 GHz
|
|
Channel Bandwidth
|
Supports 20 MHz
|
|
Security
|
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
|
|
Transmission Rate
|
11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
|
|
Wi-Fi Pairing
|
AP Pairing
|
|
Protocol
|
EZVIZ Cloud Proprietary Protocol
|
|
Interface Protocol
|
EZVIZ Cloud Proprietary Protocol
|
|
Wired Network
|
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
|
|
General
|
|
Dimensions
|
72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)
|
|
Package Dimensions
|
227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
|
|
Weight
|
Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz)
|
|
IP Grade
|
IP67
|
|
Operating Conditions
|
-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
|
|
Function
|
|
Detection
|
AI-Powered Human Shape Detection, Motion Detection
|
|
Customized Alert Area
|
Supports
|
|
Integration
|
Works with Alexa, Google Assistant, IFTTT
|
|
General Function
|
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
|
|
Storage
|
|
Local Storage
|
Supports microSD card (Up to 512 GB)
|
|
Cloud Storage
|
Supports EZVIZ CloudPlay storage (Subscription required)
|
|
Power
|
|
Power Supply
|
DC 12V / 1A
|
|
Power Consumption
|
Max. 6W
|
|
In the box
|
|
In the box
|
- H3c Camera
|
|
- Drill Template
|
|
- Screw Kit
|
|
- Waterproof Kit
|
|
- Power Adapter
|
|
- Regulatory Information
|
|
- Quick Start Guide
|
|
Certifications
|
|
Certifications
|
CE / FCC / UKCA / UL / WEEE / RoHS / REACH
|
