| Image sensor |
1/2.7” Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8 mm, viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal), 102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62° (Diagonal) |
| DNR |
3D DNR |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| WDR |
WDR |
| BLC |
Supports |
| Night Vision |
Up to 98 ft / 30 m |
| Video & Audio |
| Max. Resolution |
2304 × 1296 |
| Frame Rate |
Max: 25fps; Self-Adaptive during network transmission |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
3Mbps |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive bit rate. |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Support 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Functions |
| Smart Alarm |
Motion Detection, AI-Powered Human Shape Detection / Vehicle Shape Detection |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card storage (up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage |
| General |
| IP Grade |
IP67 |
| Operating Conditions |
-30℃ ~ 50℃, humidity 95% or less (non-condensing) |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
MAX. 8W |
| Dimensions |
106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch) |
| Weight |
229 g (8.08 oz) |
| In the box |
| In the box |

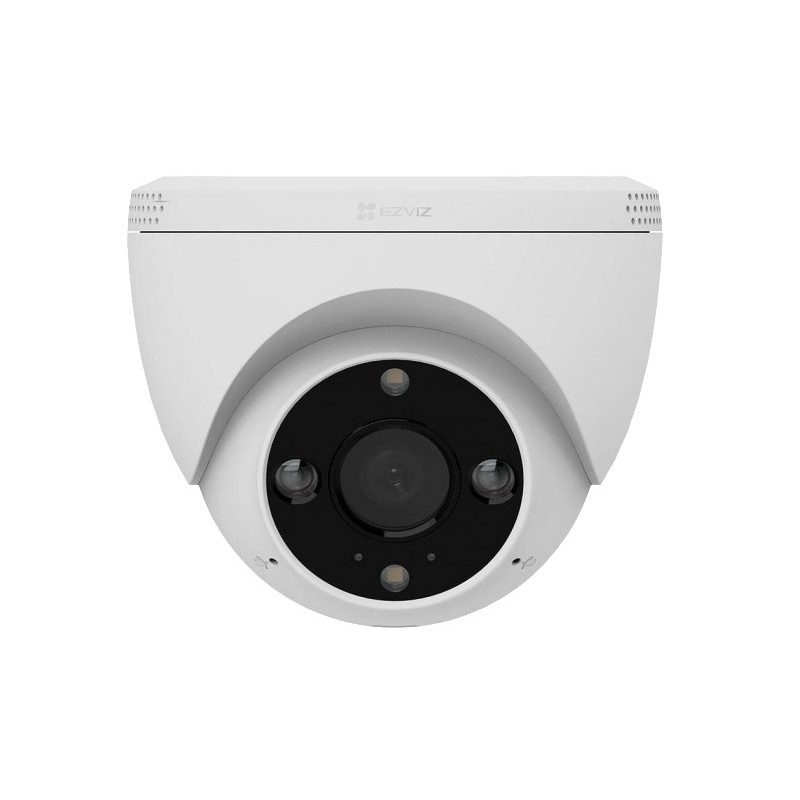

- H4 2K Camera |
| - Power Adapter |
| - Drill Template |
| - Screw Kit |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
| Certifications |
CE / UKCA / RoHS / REACH / WEEE |
