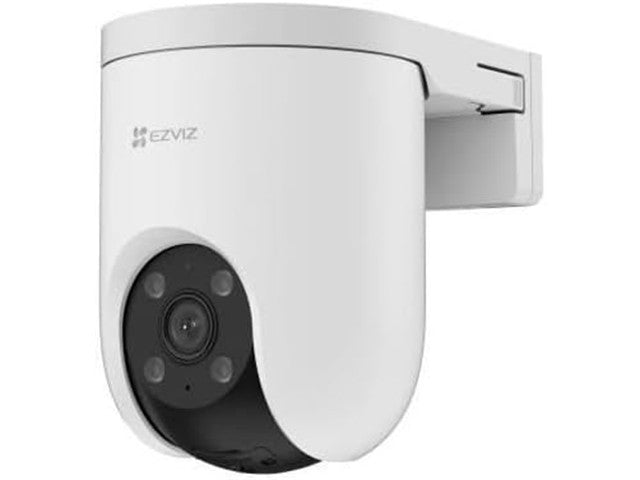

Ezviz Smart Home WiFi Camera PAN & Tilt 5MP 4mm Lens, 30m IR, 1/2.7” CMOS, H.265, PAN:350°, TILT:80°, 3D DNR, WDR, AI-Powered Human/Vehicle Shape Detection, Two Way Talk, 3K RES, Supports Micro SD Card up to 512GB, 1xRJ45 10/100M, PSU12V1A
Smart Home WiFi Camera
Specifications
Camera
- Image Sensor : 1/2.7" Progressive Scan CMOS
- Shutter Speed : Self-adaptive shutter
- Lens : 4mm@ F1.6, viewing angle: 48° (Vertica), 91° (Horizontal), 108° (Diagonal)
6mm@ F1.6, viewing angle:30° (Vertica), 56° (Horizontal), 66° (Diagonal)
- Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR
(*data is obtained from EZVIZ laboratories)
- PT Angle : Pan: 350°, Tilt: 80°
- Lens Mount : M12
- Day & Night : IR-cut filter with auto switch
- DNR : 3D DNR
- WDR Digital : WDR
- Black & White Night : 30m / 98ft
Video & Audio
- Max Resolution : 2880*1620
- Frame Rate : Max:30fps; Self-Adaptive during network transmission
- Video Compression : H.265 / H.264
- H.265 Type : Main Profile
- Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit Rate : Self-Adaptive
Network
- Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n m
- Frequency Bands : 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth : Support 20MHz
- Security : WPA-PSK/WPA2-PSK
- Transmission Rate : 11b: 11Mbps,11g :54Mbps,11n :72Mbps
- Wi-Fi Pairing : AP pairing
- Protocol : EZVIZ cloud proprietary protocol
- Interface Protocol : EZVIZ cloud proprietary protocol
- Wired Network : RJ45 × 1(10M/100M Adaptive Ethernet Port)
Function
- Smart Alarm : AI-Powered Human / Vehicle Shape Detection
- Auto Tracking : Supports
- Customized Alert Area : Supports
- Two-way Talk : Supports
- General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
- Local Storage : Micro SD card slot (Up to 512 GB)
- Cloud Storage : EZVIZ CloudPlay storage (Subscription required)
Downloads
Additional Information
| Device |
Camera |
| Type |
Smart Home | WiFi |
