Material and Specification
|
|
Panel Material
|
Aluminum alloy
|
|

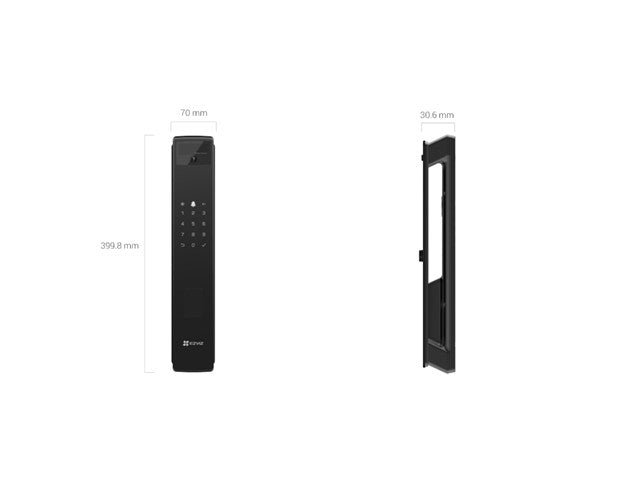

Panel Size
|
Front panel: 400 × 73.7 × 53.44 mm
Rear panel: 400 × 72 × 30.5 mm
|
|
Color
|
Metallic grey
|
|
Lock Body Type
|
Automatic mechanical detection lock body 5085 / 6068
|
|
Lock Cylinder
|
C-level cylinder
|
|
Emergency Charging
|
Type-C
|
|
Working Power
|
5,000 mAh rechargeable lithium batteries
|
|
Technical Specification
|
|
Unlocking Method
|
Face ID, Palm Vein, Fingerprint, Passcode, Mechanical key, Bluetooth key Temporary codes, Remote unlocking
|
|
User Capacity
|
50 pcs
|
|
Face ID Capacity
|
50 pcs
|
|
Palm Vein Capacity
|
50 pcs
|
|
Fingerprint Capacity
|
50 sets
|
|
Passcode Capacity
|
50 pcs
|
|
Communication Methods
|
2.4 GHz Wi-Fi, Bluetooth
|
|
Screen (non-touch)
|
IPS 4-inch (480 × 800)
|
|
IP Grade
|
IP52
|
|
Front Panel Camera Resolution
|
1080p (1080 × 1960)
|
|
Front Panel Camera Lens
|
View angle: 70° (Horizontal), 126° (Vertical), 150°(Diagonal)
|
|
IR Night Vision Distance
|
2 m
|
|
Storage
|
EMMC 8G; Supports EZVIZ CloudPlay storage
|
|
Face Recognition
|
Standing distance < 1 m, height greater than 1.2 m and less than 2 m Recognition speed ≤ 1 s, supports day / night recognition Supports recognition across varying hairstyle and with glasses
* EZVIZ laboratory data
|
|

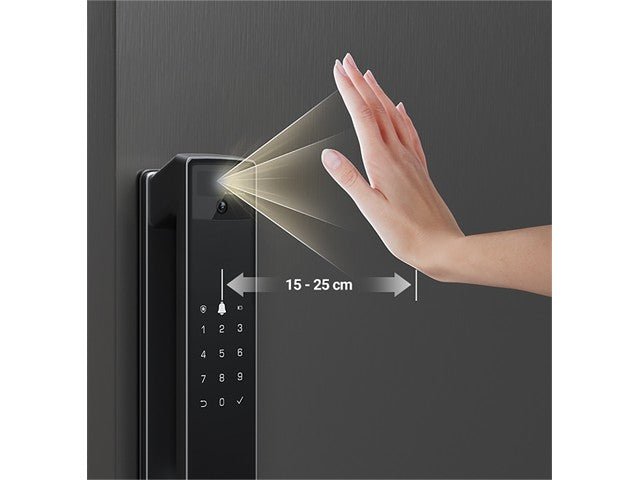

Palm Vein Recognition
|
Recognition distance between the palm vein and sensor: 15 ~ 25 cm
* EZVIZ laboratory data
|
|
Software Function
|
Anti-peeping code, Low battery warning, Privacy mode, User management, Real time notification, Anti-test locking, Anti-tamper alarm, Remote control, Video calling, Voice changer, Wandering detection
|
|
Voice Control
|
Supports Google Assistant and Amazon Alexa (Supports OTA updates)
|
|
Supported Door Thickness
|
6068: 40 ~ 120 mm;
5085: 40 ~ 100 mm
|
|
Working Temperature
|
-20°C ~ 60°C
|
|
Operating Humidity
|
10% ~ 95%
|
|

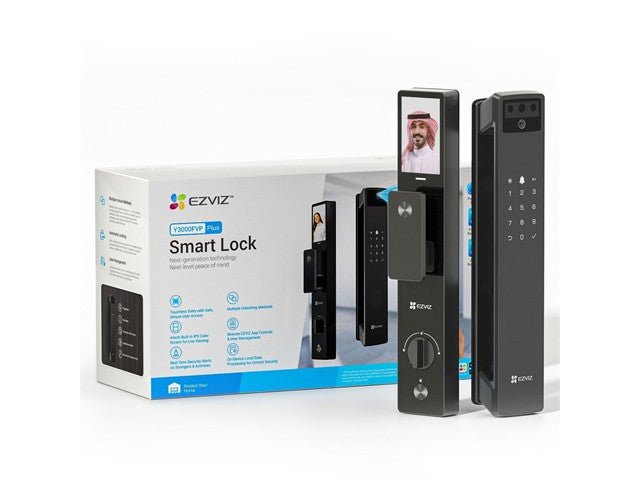

In the box
|
|
In the box
|
- Front Panel
|
|
- Rear Panel
|
|
- Hole Templet
|
|
- Lock Body
|
|
- Lock Body Screw Bag
|
|
- Standard Screw Bag
|
|
- Battery
|
|
- Key Bag
|
|
- Square Rod
|
|
- Sticker
|
|
- Regulatory Information
|
|
- Quick Start Guide
|
|
Certifications
|
|
Certifications
|
CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
|
