FGS-222

SKU: FGS-222

BRAND: Fibaro

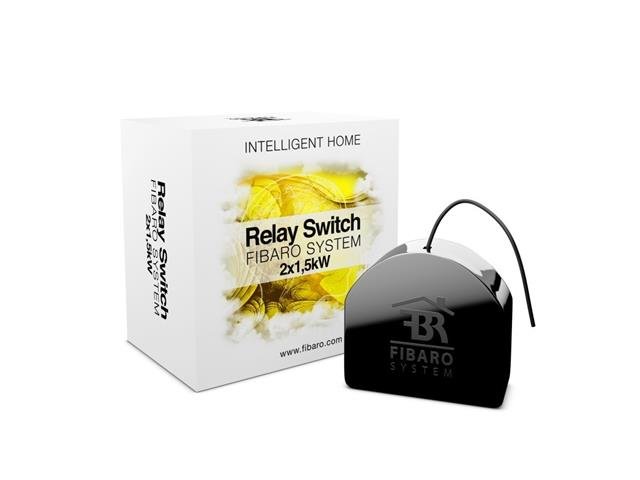

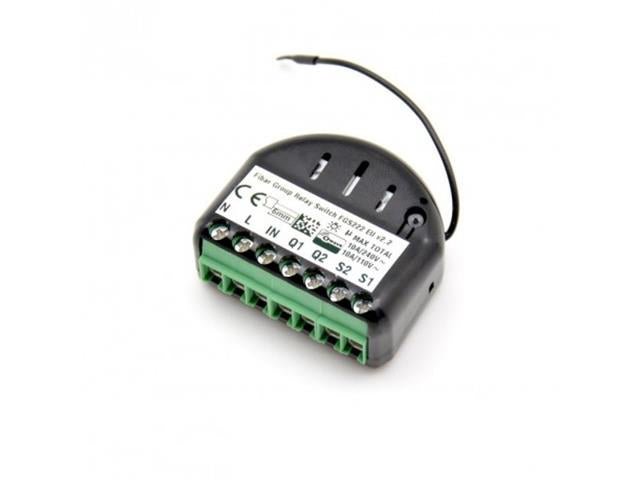

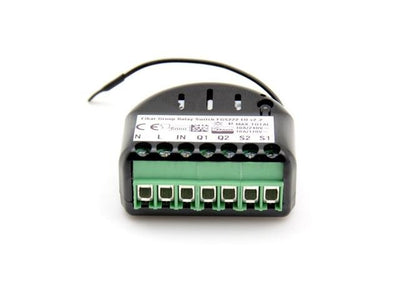

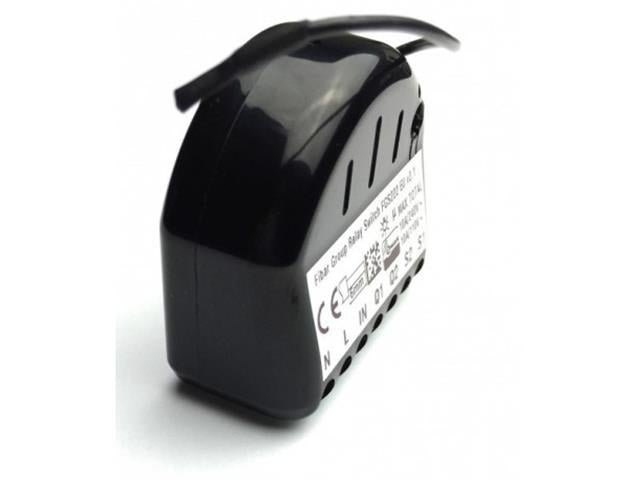

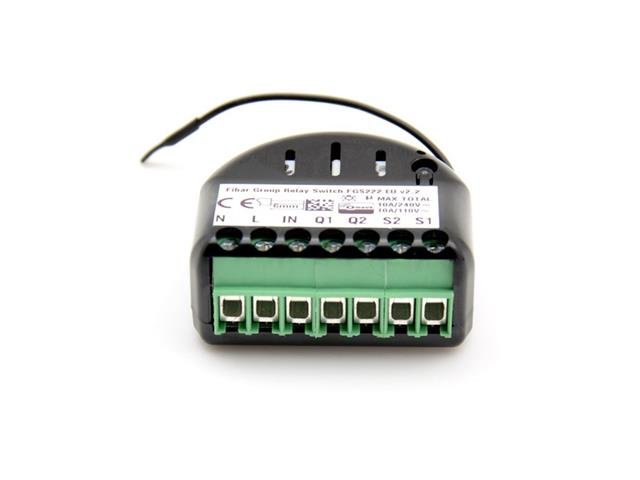

FIBARO Relay Switch 2X1,5KW - Dual Circuit ON/OFF Switch, Designed for use in Sockets. FGS-222 868,4 MHZ

Single & Double Switch

Features

  • Compatible with any Z-Wave Controller
  • Advanced microprocessor control
  • Executive element – electromagnetic, micro-gap relay switch
  • May be oparated by momentary or toggle switches
  • To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations

Specifications

  • Power supply: 110-240 V AC, 50/60 Hz
  • Rated load current (resistive load): 6.5A per channel, 10A total current
  • Power consumption: up to 0.8W
  • Power output (resistive load): 2x1500W for 240V AC, 2x750W for 120V AC
  • In accordance with EU standards: RED 2014/53/EU, RoHS 2011/65/EU
  • Operational temperature: 0-35°C
  • Active element: micro-gap relay switch μ
  • Durability (resistive load, 6.5A): 200 000 switches
  • For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm
  • Radio protocol: Z-Wave
  • Radio signal power: up to 1mW
  • Radio frequency:
    • 868.4 MHz EU;
    • 908.4 MHz US;
    • 921.4 MHz ANZ;
    • 869.0 MHz RU;
    • 865.2 MHz IN;
  • Radio transmit power: up to -1 dBm (EIRP)
    • Range:
    • up to 50 m outdoors
    • up to 30 m indoors (depending on building materials)

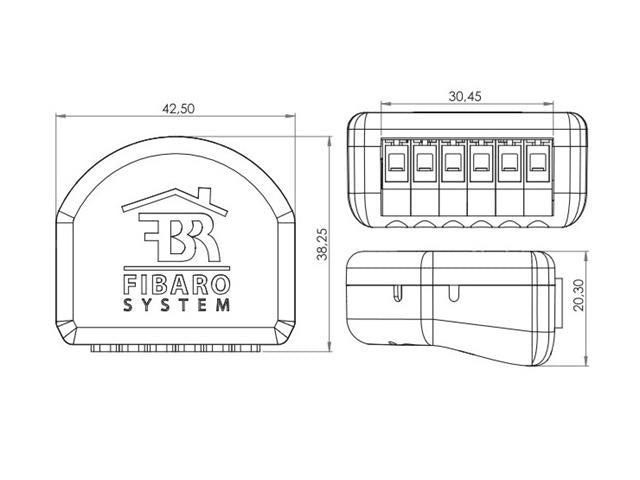

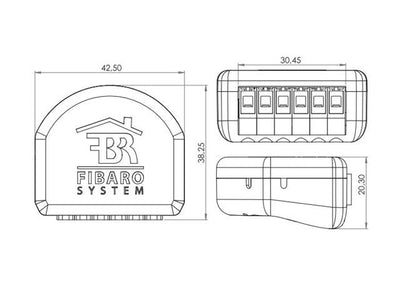

  • Dimensions: (L x W x H)): 42.50 x 38.25 x 20.30 mm

Downloads

Additional Information

Device Switch
Type Single & Double

-->
