FLUKE 789/IR3000FC - Multimeters & Voltmeters -

FLUKE 789/IR3000FC

Name: FLUKE 789/IR3000FC - Communica [Part No: FLUKE 789/IR3000FC]
Brand: Fluke
SKU: FLUKE 789/IR3000FC
Price: 38750 ZAR
Availability: OutOfStock

SKU: FLUKE 789/IR3000FC

BRAND: Fluke

Sold Out
R 44,562.50_{(inc VAT)}
R 38,750.00_{(ex VAT)}

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

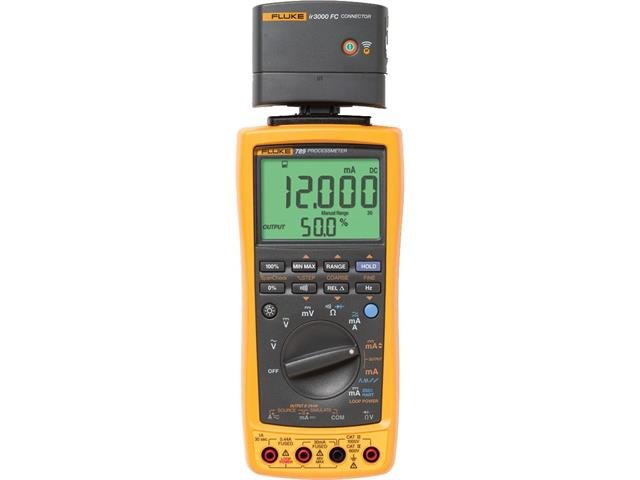

Process Meter come with IR3000FC Connector for Wireless Comms

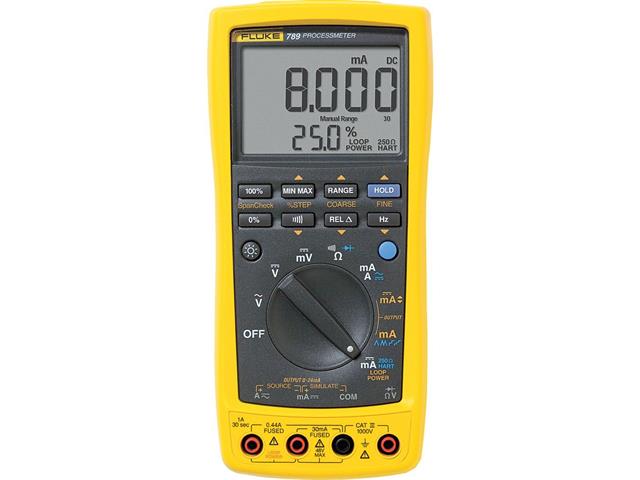

Process Meter

Overview

Use the Fluke-789 ProcessMeter with the Fluke Connects smart phone application to log measurements to your smart phone

Remotely view changing sourced 4-20 mA signals from the Fluke-789 with the Smart phone App and compare to the control system HMI (Human Machine Interface display)

Features

24 V loop power supply
HART mode setting with loop power (adds 250 ohm resistor)
100% larger dual display
1200 ohm drive capability on mA source
Enhanced backlight with two brightness settings
Improved battery power with four AA batteries
0-100% mA Span Check buttons to toggle between 4 and 20 mA
Infrared I/O serial port compatible with FlukeView Forms
V 2.1 Software (available Feb. 2003)
5 V dc measurement capability on the 4 V dc range for precise 1-5 V measurements
Externally accessible fuses for easy replacement
DMM designed to meet 1000 V IEC 1010 Cat III standards
Precision 1000 V, 440 mA digital multimeter
Measure ac and dc volts
AC and dc voltage accuracy: 0.05 % dc current accuracy, 1 uA resolution to 30 mA
Simultaneous mA and % of scale readout
True-rms ac voltage measurement
Frequency measurement to 20 kHz
Min/Max/Average/Hold/Relative modes
Diode Test and Continuity Beeper
20 mA dc current source / loop calibrator / simulator
Simultaneous mA and % of scale readout
Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
Externally accessible battery for easy battery changes V overload protection on V, ohms, frequency, mA (backed-up by 440 mA 1000 V fuse)
Process Meter

Fluke 789 Includes

TL71 Premium Test Lead Set
AC72 Alligator Clips
Four AA alkaline batteries (installed)
Users Manual
Quick Reference Guide

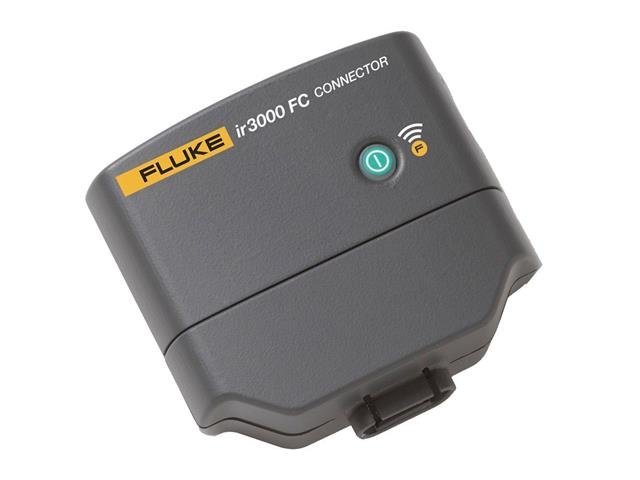

Fluke ir3000FC Features

Connect your Fluke test tool with the ir3000 FC connector and get all the benefits of the Fluke Connect™ app. Fluke Connect ir3000 FC Connector allows you to wirelessly transfer data from your existing Fluke Tools to your smart phone.

Fits over the IR port of your existing Fluke Tools
Upgradeable by USB
Immediately enables you to graph, save and share the tool's reading with your team from your smart phone

Specifications

Fluke 789 Specifications
Current measurement	Range	0-1 A AC or DC
	Resolution	1 mA
	Accuracy	0.2% + 2 LSD (DC)
	Range	0-30 mA
	Resolution	0.001 mA
	Accuracy	0.05% + 2 lSD
Current sourcing	Range	0-20 mA or 4-20 mA
	Resolution	0.05% of span
	Drive capability	24 V Compliance or 1200 Ω @ 20 mA
Frequency	to 19.999 kHz, 0.005% + 1 LSD
Continuity	Beeps for resistance < 100 Ω
Voltage measurement	Range	0-1000 V AC (true-rms) or DC
	Resolution	0.1 mV to 1.0 V
	Accuracy	0.1% Rdg + 1 LSD (VDC)
Resistance measurement	to 40 MΩ, 0.2% + 1 LSD
Diode test	2.0 V shoes diode voltage drop
Display current and % of span	Yes
Auto Step, Auto Ramp	Yes
Environmental Specifications
Operating temperature	-20°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% up to 30°C
	75% up to 40°C
	45% up to 50°C
	35% up to 55°C
Temperature coefficient	0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety	Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category	IEC 1010-1 CAT III 1000 V
	IEC 1010-1 CAT IV 600 V
Maximum voltage	1000 V RMS
Mechanical and General Specifications
Size (H x W x L)	50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight	610 g (1.6 lbs)
Batteries	4 AA alkaline batteries
Warranty	3 years
Battery life	140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibration	Random, 2 g, 5-500 Hz
	1 meter drop test

Downloads

Additional Information

Keywords	fluke, fluke 789, Process Meter, Digital Multimeter, Loop Calibrator
Device	Process Meter
Type	Digital Multimeter \| Loop Calibrator

Discover the Fluke 789 Process Meter with IR3000FC, your ultimate tool for accurate measurements and wireless connectivity. Effortlessly log and share data via the Fluke Connect app, ensuring real-time monitoring and enhanced productivity. With features like dual display and 24V loop power, this digital multimeter and loop calibrator is designed for precision, making it an essential asset for professionals in any industry.
