FQPF2N60C

Name: FQPF2N60C - Communica [Part No: FQPF2N60C]
Brand: Fairchild
SKU: FQPF2N60C
Price: 10.12 ZAR
Availability: OutOfStock

SKU: FQPF2N60C

BRAND: Fairchild

Sold Out
R 11.64_{(inc VAT)}
R 10.12_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: MOSFET

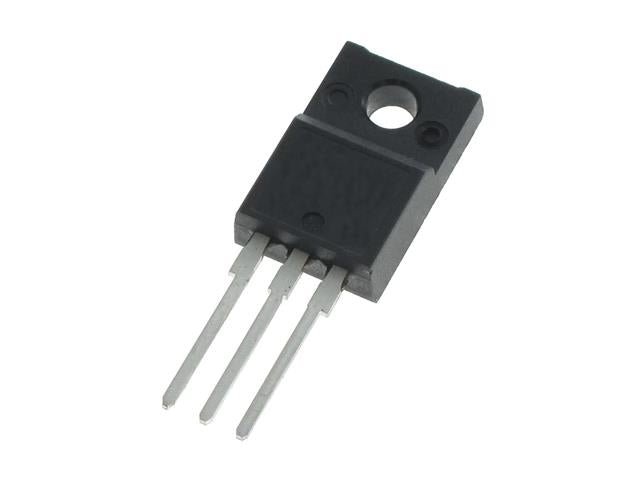

N-MOSFET 600V 2A 23W 4.7 Ω TO-220F

MOSFET 600V N-Channel

Specifications

Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage : 600 V
Id - Continuous Drain Current : 2 A
Rds On - Drain-Source Resistance : 4.7 Ohms
Vgs - Gate-Source Voltage : - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage : 2 V
Qg - Gate Charge : 12 nC
Minimum Operating Temperature : - 55 C
Maximum Operating Temperature : + 150 C
Pd - Power Dissipation : 23 W

Downloads

Datasheet - FQPF2N60C

Additional Information

Device	MOSFET
Type	600V \| N-Channel

The FQPF2N60C N-Channel MOSFET offers exceptional performance with a 600V breakdown voltage and 2A continuous drain current, making it ideal for high-efficiency power applications. With low on-resistance of 4.7 ohms and a wide operating temperature range, this reliable component ensures optimal power dissipation and durability. Upgrade your designs today for enhanced efficiency and reliability!
