HF105F-1-012D6-1ZS

Name: HF105F-1-012D6-1ZS - Communica [Part No: HF105F-1-012D6-1ZS]
Brand: Hongfa
SKU: HF105F-1-012D6-1ZS
Price: 52.75 ZAR
Availability: InStock

SKU: HF105F-1-012D6-1ZS

BRAND: Hongfa

R 60.66_{(inc VAT)}
R 52.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

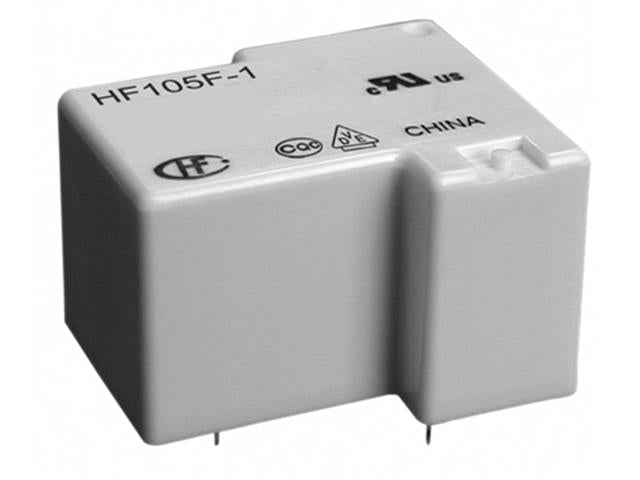

High Power Horizontal PCB Mounted Sealed Relay Form 1C (1c/o) + Pin 6 12VDC 155 Ohm Coil. 20A/10A- 240VAC/ 28VDC (20A @ 277VAC/28VDC Max.)

Specifications

Plastic Sealed
With Pin No. 6
Insulation Class B

Downloads

Datasheet

Additional Information

Keywords	HF105F-1 Power Relay, Relay 12V 10A
Model	HF105F-1-012D6-1ZS
Device	Relay
Type	Power
Contact Form	Form 1C
Size Category	Mini
Size	32.2x27x20.1mm
Termination	PCB
Coil Rated Voltage	12V
AC/DC Voltage	DC
Max. Switching Current	10A
Electrical Rating	10A \| 240VAC
Coil Power	900mW Power
Coil Resistance	155Ω
Isolation Voltage	2K5V
Approvals	UL/CUL
Contact Material	AgCdO
No. of Pins	6 Pin(s)
No. of Poles	1 Pole(s)

Upgrade your projects with the HF105F-1 Power Relay, a reliable 12VDC sealed relay designed for high performance. With a compact size and 10A switching capacity, it ensures efficient operation in demanding applications. Perfect for PCB mounting, this durable relay combines safety and reliability, making it an essential component for your electrical needs.
