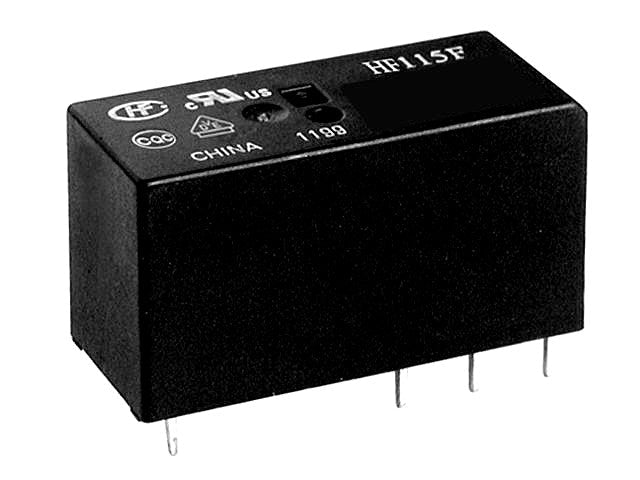

HF115F-009-1ZS2AF

Name: HF115F-009-1ZS2AF - Communica [Part No: HF115F-009-1ZS2AF]
Brand: Hongfa
SKU: HF115F-009-1ZS2AF
Price: 44.75 ZAR
Availability: InStock

SKU: HF115F-009-1ZS2AF

BRAND: Hongfa

R 51.46_{(inc VAT)}
R 44.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

High Power Mini Sealed Lo Profile Relay Form 1C (1c/o) 5mm Contact Spacing 9VDC 202 Ohm Coil 12A 250VAC (440VAC/300VDC Max.) - Class F Insulation

High Power Mini Sealed Lo Profile Relay

Specifications

Series	HF115F
Coil Voltage	9 VDC
Coil Resistance	202 Ω (±10%)
Nominal Power Consumption	~400 mW
Contact Arrangement	1 Form C (1 C/O, SPDT)
Rated Contact Switching Load	12 A @ 250 VAC
Max. Switching Voltage	440 VAC / 300 VDC
Max. Switching Current	12 A
Max. Switching Power	3,000 VA / 360 W
Contact Material	AgSnO₂ (Silver Tin Oxide)
Pin Pitch / Spacing	5.0 mm contact terminal spacing
Enclosure / Sealing	Plastic Sealed (Washable)
Insulation Class	Class F (155°C max ambient tolerance)
Dielectric Strength (Coil to Contact)	5,000 VAC (1 minute)
Operating Temperature Range	-40°C to +85°C
Dimensions (L × W × H)	29.0 mm × 12.7 mm × 15.7 mm

Downloads

HF115F Datasheet

Additional Information

Device

Relay

Discover the HF115F-009-1ZS2AF Miniature High Power Relay, designed for efficiency with a 9V DC coil and a 12A max switching current. Its low-profile case and PCB termination make it ideal for compact applications, ensuring reliable performance with UL and VDE approvals. Upgrade your projects with this durable relay, perfect for both AC and DC circuits.
