HF115F-048-2ZS4AF

Name: HF115F-048-2ZS4AF - Communica [Part No: HF115F-048-2ZS4AF]
Brand: Hongfa
SKU: HF115F-048-2ZS4AF
Price: 56.95 ZAR
Availability: InStock

SKU: HF115F-048-2ZS4AF

BRAND: Hongfa

R 65.49_{(inc VAT)}
R 56.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

High Power Mini Sealed Lo Profile Relay Form 2C (2c/o) 5mm Contact Spacing 48VDC 5760 Ohm Coil 8A 250VAC (440VAC/300VDC Max.)- Class F Insulation

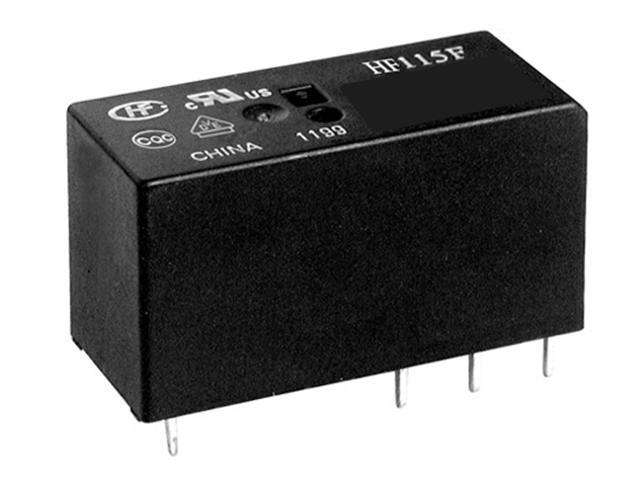

High Power Mini Sealed Lo Profile Relay

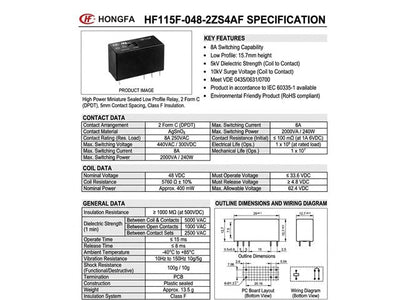

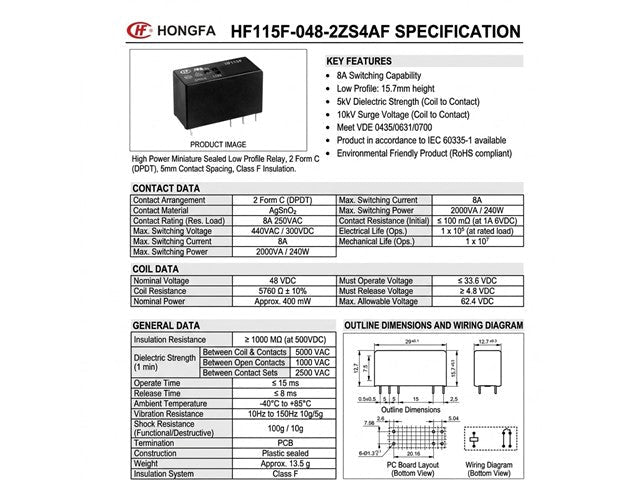

Specifications

Series	HF115F
Coil Voltage	48 VDC
Coil Resistance	5,760 Ω (±10%)
Nominal Coil Power	~400 mW
Contact Arrangement	2 Form C (2 C/O, DPDT)
Rated Contact Switching Load	8 A @ 250 VAC
Max. Switching Voltage	440 VAC / 300 VDC
Max. Switching Current	8 A
Max. Switching Power	2,000 VA / 240 W
Contact Material	AgSnO₂ (Silver Tin Oxide)
Pin Pitch / Spacing	5.0 mm contact terminal spacing
Enclosure / Sealing	Plastic Sealed (Washable)
Insulation Class	Class F (155°C max ambient tolerance)
Dielectric Strength (Coil to Contact)	5,000 VAC (1 minute)
Dielectric Strength (Between Poles)	2,500 VAC (1 minute)
Operating Temperature Range	-40°C to +85°C
Dimensions (L × W × H)	29.0 mm × 12.7 mm × 15.7 mm

Downloads

HF115F Datasheet

Additional Information

Device

Relay

Discover the HF115F-048-2ZS4AF Miniature High Power Relay, designed for efficiency and reliability. With a compact low-profile case and 8A max switching capacity, it’s perfect for PCB applications. Enjoy enhanced performance with UL-approved safety standards and a robust insulation class, ensuring longevity and peace of mind for your projects.
