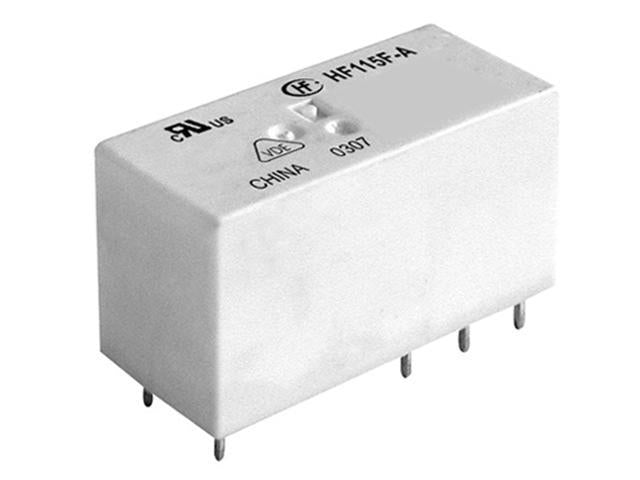

SKU: HF115F-A-230-1ZS1A

BRAND: Hongfa

Relay PCB 1C 230VAC 12A 32500E P= 3,5mm

Relay PCB 1C 230VAC 12A


  • Plastic Sealed
  • Low Profile Case ,Insulation Class B
  • 10mm Creepage Distance
  • 3,5mm Pin Pitch


Additional Information

Device Relay
Type PCB | 1C | 230VAC | 12A
Contact Form Form 1C
Size Category Mini
Size 29.0x12.7x15.7mm
Termination PCB
Coil Rated Voltage 230V
AC/DC Voltage AC
Max. Switching Current 12A
Electrical Rating 12A 230VDC
Coil Resistance 32.5kΩ
Isolation Voltage 5KV
Approvals UL/CUL/VDE
Contact Material AgCdO
No. of Pins 5 Pin(s)
No. of Poles 1 Pole(s)
