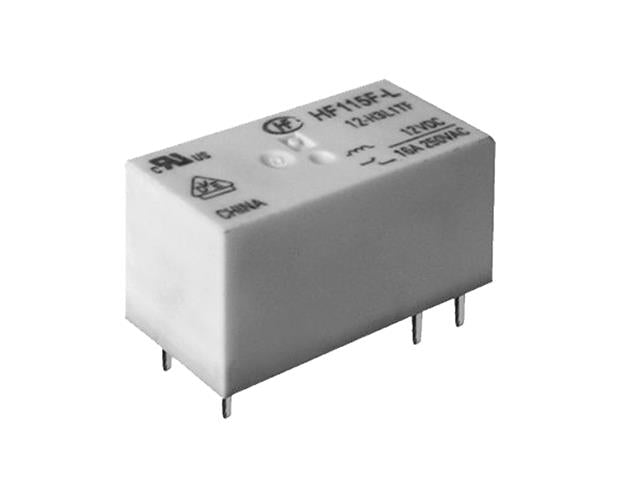

HF115F-L-12-HS3L2TF(335)

Name: HF115F-L-12-HS3L2TF(335) - Communica [Part No: HF115F-L-12-HS3L2TF(335)]
Brand: Hongfa
SKU: HF115F-L-12-HS3L2TF(335)
Price: 49.40 ZAR
Availability: InStock

SKU: HF115F-L-12-HS3L2TF(335)

BRAND: Hongfa

In Stock
R 56.81_{(inc VAT)}
R 49.40_{(ex VAT)}

Collections: Electromechanical

Type: Relays

Category: Power Relays

High Power Mini Sealed Low Profile 2 Coil Latching Relay Form 1A (1n/o) 5mm Contact Spacing 12VDC 240 Ohm Coil 16A 250VAC (440VAC/300VDC Max.) - Class F Insulation

Mini Sealed Low Profile 2 Coil Latching Relay

Features

Latching relay
Low height: 15.7mm
20A switching capability
5kV dielectric strength (between coil and contacts)
Creepage distance: 11mm-NO/10mm-CO version
Meeting VDE 0700,0631 reinforce insulation
Product in accordance to IEC 60335-1 available
UL insulation system: Class F

Downloads

HF115F-L_1_Datasheet

Additional Information

Device	Relay
Type	High Power \| Mini \| Sealed \| Low Profile \| 2 Coil \| Latching
Contact Form	Form 1A
Coil Rated Voltage	12V
Max. Switching Current	16A
Coil Resistance	240Ω
