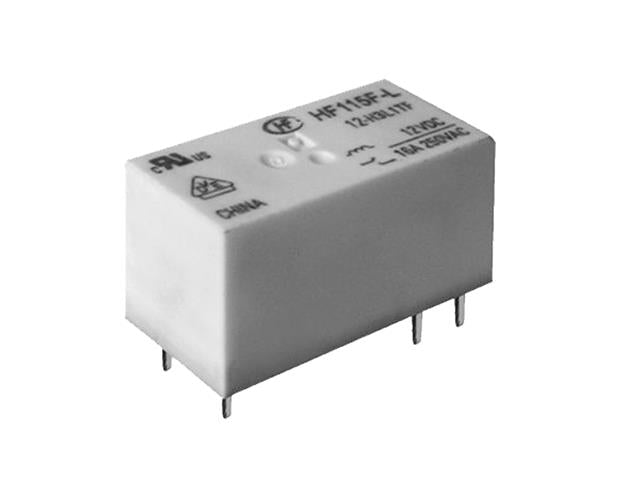

HF115F-L-12-ZS3L2TF(335)

SKU: HF115F-L-12-ZS3L2TF(335)

BRAND: Hongfa


High Power Mini Sealed Low Profile 2 Coil Latching Relay Form 1C (1c/o) 5mm Contact Spacing 12VDC 240 Ohm Coil 16A 250VAC (440VAC/300VDC Max.) - Class F Insulation

Mini Sealed Low Profile 2 Coil Latching Relay

Features

  • Latching relay
  • Low height: 15.7mm
  • 20A switching capability
  • 5kV dielectric strength (between coil and contacts)
  • Creepage distance: 11mm-NO/10mm-CO version
  • Meeting VDE 0700,0631 reinforce insulation
  • Product in accordance to IEC 60335-1 available
  • UL insulation system: Class F

Downloads

Additional Information

Device Relay
Type High Power | Mini | Sealed | Low Profile | 2 Coil | Latching
Contact Form Form 1C
Coil Rated Voltage 12V
Max. Switching Current 16A
Coil Resistance 240Ω

-->
