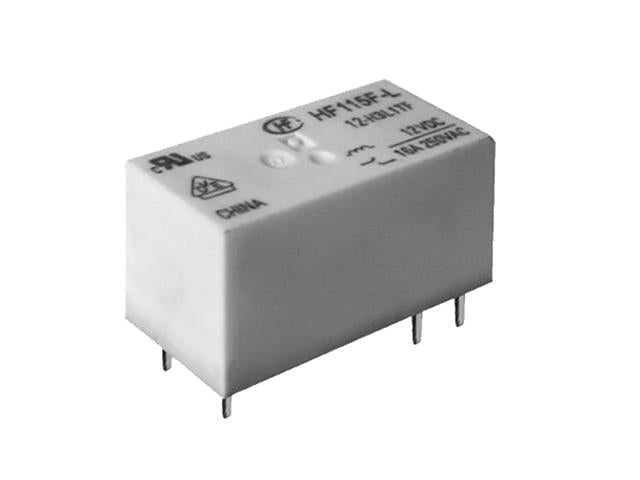

HF115F-L-24-2ZS4L1TF

Name: HF115F-L-24-2ZS4L1TF - Communica [Part No: HF115F-L-24-2ZS4L1TF]
Brand: Hongfa
SKU: HF115F-L-24-2ZS4L1TF
Price: 58.28 ZAR
Availability: InStock

SKU: HF115F-L-24-2ZS4L1TF

BRAND: Hongfa

In Stock
R 67.02_{(inc VAT)}
R 58.28_{(ex VAT)}

Collections: Electromechanical

Type: Relays

Category: Power Relays

High Power Mini Sealed Low Profile 1 Coil Latching Relay Form 2C (2c/o) 5mm Contact Spacing 24VDC 1440 Ohm Coil 8A 250VAC (440VAC/300VDC Max.) - Class F Insulation

Mini Sealed Low Profile 1 Coil Latching Relay

Features

Latching relay
Low height:15.7mm
10A switching capability
5kV dielectric strength (between coil and contacts)
Creepage distance:11mm-NO/10mm-CO version
Meeting VDE 0700,0631 reinforce insulation
Product inaccordance to IEC 60335-1 available
UL insulation system: Class F

Downloads

HF115F-L 2 pole-Datasheet

Additional Information

Device	Relay
Type	High Power \| Mini \| Sealed \| Low Profile \| 1 Coil \| Latching
Contact Form	Form 2C
Coil Rated Voltage	24V
Max. Switching Current	8A
Coil Resistance	1440Ω
