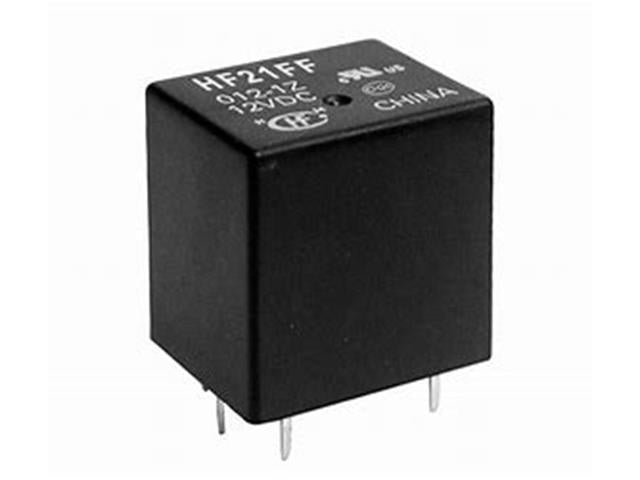

Relay PCB Form 1C 12VDC 400E Contact = 10A @ 250VAC
Relay PCB Form 1C
Specifications
- Contact Form : SPDT (1 Form C)
- Nominal Coil Voltage : 12V
- Contact Current-Max : 10A
- Coil Resistance : 1600Ω
- Switching Voltage : 30V
- Contact Material : Silver Tin Oxide (AgSnO2)
- Operating Temp Range : -40°C to +70°C
- Insulation Resistance : 100MΩ
- Height - Max : 20.2mm
- Termination Style : Straight Thru Hole
- No of Terminals : 5
- Mounting Method : PCB Mount
Additional Information
Device |
Relay |
Type |
Relay | PCB | Form 1C |
