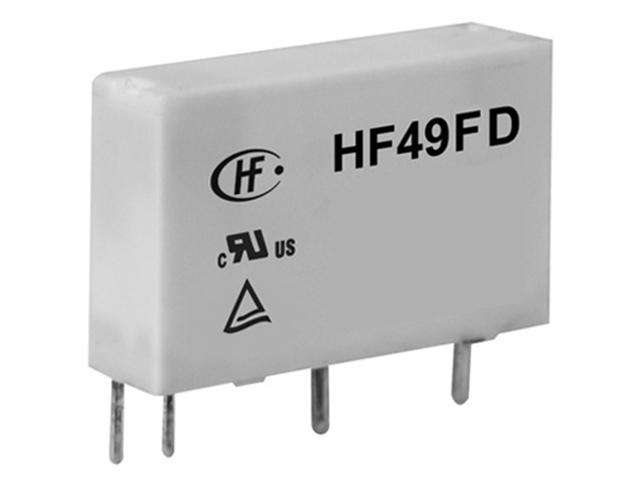

HF49FD-005-1H11G

SKU: HF49FD-005-1H11G

BRAND: Hongfa


Miniture Power Relay, Form 1A, VCoil= 5V DC, IMax Switching= 5A , RCoil= 208Ω, PCB, in Vertical Case

Overview

Features

Specification



  • Gold Plated Contacts
  • Insulation Class A
Model HF49FD-005-1H11G
Brand Hongfa
Contact Form Form 1A
Size Category Mini
Size 20x5x12.4mm
Termination PCB
Coil Rated Voltage 5V
AC/DC Voltage DC
Max. Switching Current 5A
Electrical Rating 5A | 250VAC | 30VDC
Coil Power 180mW Power
Coil Resistance 208Ω
Isolation Voltage 3KV
Approvals UL/Cul/TUV
Contact Material AgNi
Pin Layout SIL
No. of Pins 4 Pin(s)
No. of Poles 1 Pole(s)
