HF49FD-012-1H11G

Name: HF49FD-012-1H11G - Communica [Part No: HF49FD-012-1H11G]
Brand: Hongfa
SKU: HF49FD-012-1H11G
Price: 32.95 ZAR
Availability: InStock

SKU: HF49FD-012-1H11G

BRAND: Hongfa

R 37.89_{(inc VAT)}
R 32.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

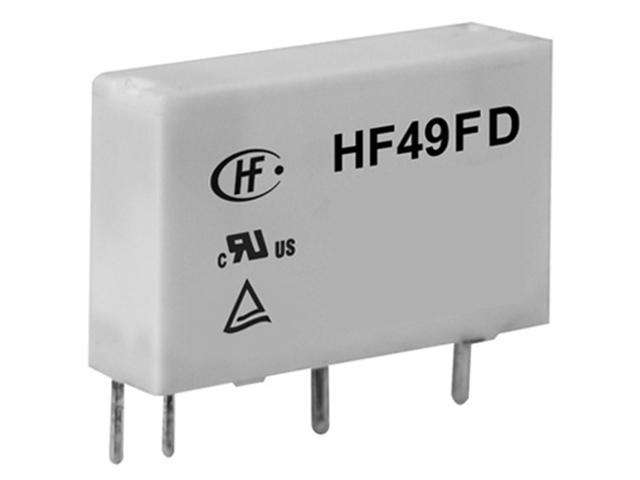

Miniature Power Relay, Form 1A, VCoil= 12V DC, IMax Switching= 5A , RCoil= 1.2kΩ, PCB, in Vertical Case

Overview

Features

Specification

Gold Plated Contacts
Insulation Class A

Model	HF49FD-012-1H11G
Brand	Hongfa
Contact Form	Form 1A
Size Category	Mini
Size	20x5x12.4mm
Termination	PCB
Coil Rated Voltage	12V
AC/DC Voltage	DC
Max. Switching Current	5A
Electrical Rating	5A \| 250VAC \| 30VDC
Coil Power	180mW Power
Coil Resistance	1.2kΩ
Isolation Voltage	3KV
Approvals	UL/Cul/TUV
Contact Material	AgNi
Pin Layout	SIL
No. of Pins	4 Pin(s)
No. of Poles	1 Pole(s)

Downloads

Datasheet Download

Discover the HF49FD-012-1H11G Miniature Power Relay, designed for reliability with gold-plated contacts and a compact 20x5x12.4mm size. This 12V DC relay switches up to 5A, making it perfect for various applications. Enhance your projects with this UL-approved relay that ensures long-lasting performance and safety.
