BRAND: Broadcom

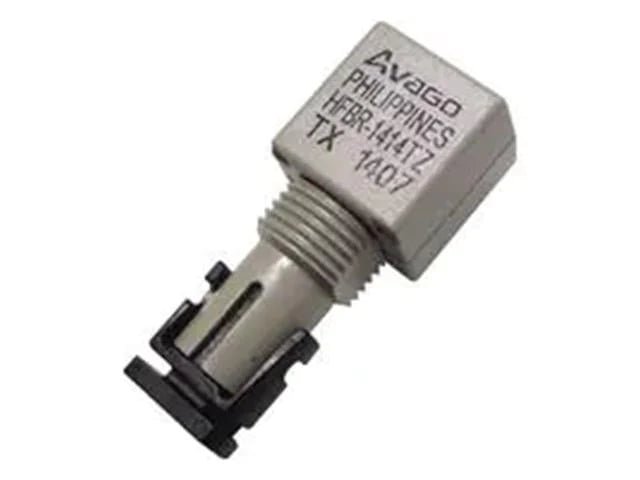

Fibre Optic Transmitter 850NM Threaded ST Connector

850NM Threaded ST Connector


  • RoHS compliant
  • Meets IEEE 802.3 Ethernet and 802.5 token ring standards
  • Meets TIA/EIA-785 100Base-SX standard
  • Low-cost transmitters and receivers
  • Choice of ST®, SMA, SC or FC ports
  • 820 nm wavelength technology
  • Signal rates up to 160 MBd
  • Link distances up to several kilometers
  • Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm Plastic-Clad Silica (PCS) Fiber
  • Repeatable ST connections within 0.2 dB typical
  • Unique optical port design for efficient coupling
  • Pick and place, and wave solderable
  • No board mounting hardware required
  • Wide operating temperature range -40 °C to +85 °C
  • Conductive port option


Additional Information

Device Connector
Type 850NM | Threaded
