HFD17-24-ZH-3N

Name: HFD17-24-ZH-3N - Communica [Part No: HFD17-24-ZH-3N]
Brand: Huaguan
SKU: HFD17-24-ZH-3N
Price: 13.50 ZAR
Availability: InStock

SKU: HFD17-24-ZH-3N

BRAND: Huaguan

In Stock
R 15.53_{(inc VAT)}
R 13.50_{(ex VAT)}

Collections: Electromechanical

Type: Relays

Category: Power Relays

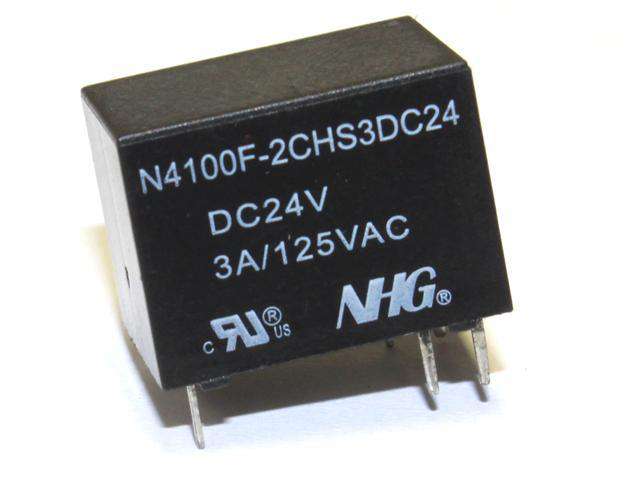

Low Power Sub-Mini Sealed Relay Form 1C (1c/o) 5 Pin 24VDC 2800 Ohm Coil 3A 250VAC/30VDC Max 8A/30VDC N4100F-2CHS3-24Vr

Overview

Features

Low coil power consumption.
High sensitivity.
Small size, light weight.
PC board mounting.
Suitable for automation facilities, telecommunication equipment, household electrical appliance, wireless radio remote control, sound control toys application etc.

Specification

Contact Form	Form 1C
Size	15.5 × 11 × 11.5
Termination	PCB
Coil Rated Voltage	24V
AC/DC Voltage	DC
Max. Switching Current	5A
Electrical Rating	30VDC/125VAC
Coil Power	0.2W Power
Coil Resistance	2880Ω
Approvals	UL \| CUR
Contact Material	Ag \| AgNi \| AgCdO
No. of Pins	5 Pin(s)

Downloads

Datasheet Download
