Signal Sub Mini Sealed Relay Form 2C (2c/o) 4,5VDC 145 Ohm Coil 2A 30VDC 0,5A 125VAC (4A@220VDC/277VAC Max.) - Gold Flash Contacts

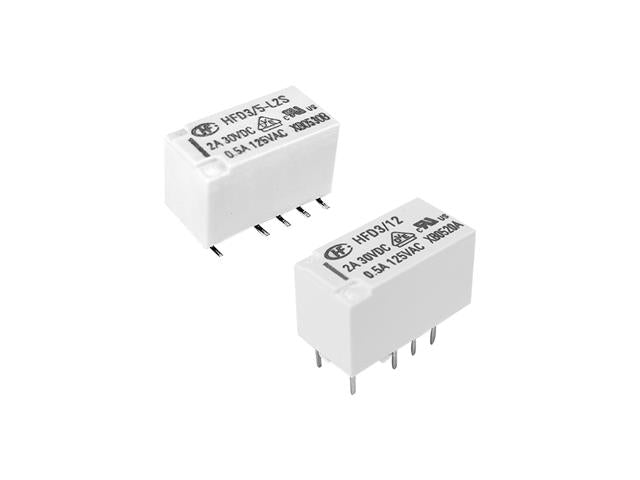

Signal Sub Mini Sealed Relay
Features
- Surge withstand voltage up to 2500VAC, meets FCC Part 68 and Telecordia
- Meets EN60950 / EN41003
- SMT and DIP types available
- Bifurcated contacts
- Single side stable and latching type available
Downloads
Additional Information
| Device |
Relay |
| Type |
Signal | Sub Mini | Sealed |
| Contact Form |
Form 2C |
| Coil Rated Voltage |
4.5V |
| Max. Switching Current |
2A |
| Coil Resistance |
145Ω |
