Adjustable DC/DC Buck Module LM2596S I/P 3-40V O/P 1,5-35V 3A (Requires 1,5V Differential) See also BMT ADJ DC/DC MODULE 3A 1,5-35V
Adjustable DC/DC Buck Module
Overview

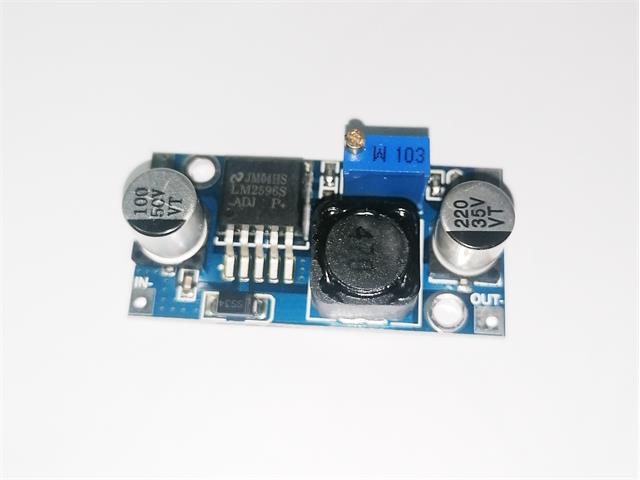

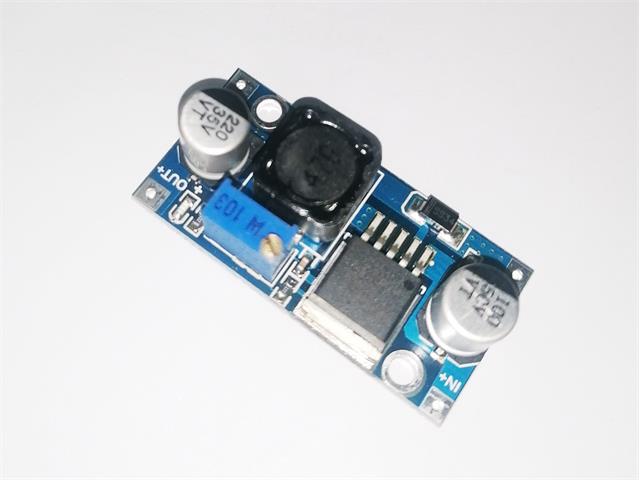

This DC-DC module uses the step-down switching regulator LM2596S to provide a stable power supply for the users. The output voltage is adjustable and can ensure 3A output load current. It works at 150 kHz and has high efficiency >90%.
Specifications
- Input Voltage : 3V~40V (1.5V higher than the output at least)
- Adjustable Output Voltage : 1.5V~35V
- Output Current : 3A
- Dimension : 45mm x 20mm x 14mm
Pins :
- IN + input positive IN-enter negative
- OUT + output the positive OUT-output negative
- Note that the input and output can not be reversed. Reverse may burn out
Additional Information
Device |
Buck Module |
Type |
Adjustable | DC/DC |
