HKD MAX9814 MICROPHONE AGC AMP

Name: HKD MAX9814 MICROPHONE AGC AMP - Communica [Part No: HKD MAX9814 MICROPHONE AGC AMP]
Brand: Communica
SKU: HKD MAX9814 MICROPHONE AGC AMP
Price: 51.30 ZAR
Availability: OutOfStock

SKU: HKD MAX9814 MICROPHONE AGC AMP

BRAND: Communica

Sold Out
R 59.00_{(inc VAT)}
R 51.30_{(ex VAT)}

Collections: IoT, Internet of things

Type: Communications

Category: Iot, Microphone Amplifier Module

MAX9814 Low Noise Microphone Amplifier with AGC. Voltage: 2.7-5.5V @ 3mA Current Output: 2VPP ON 1.25V BIAS

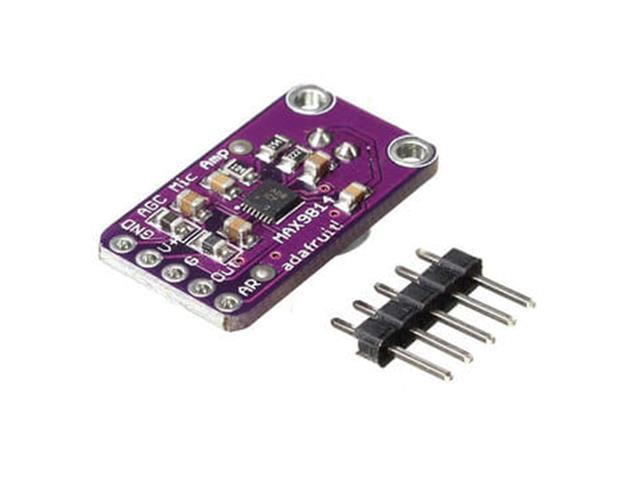

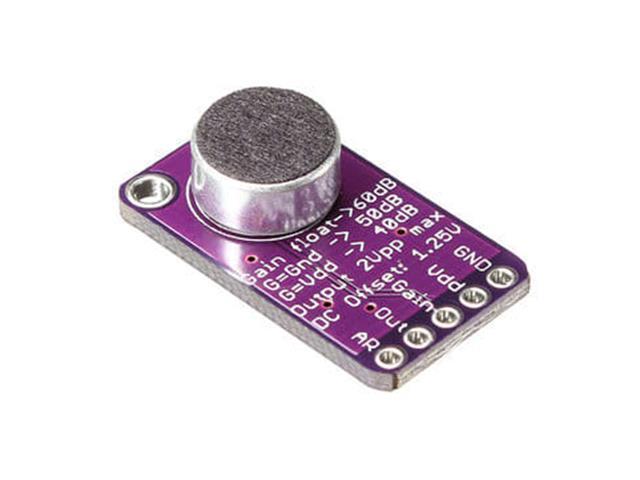

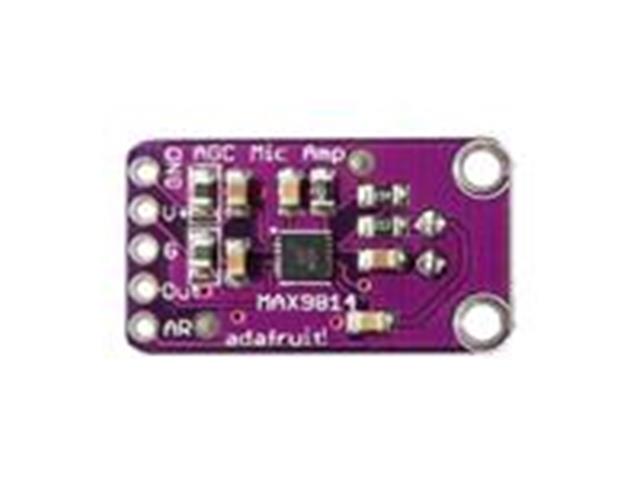

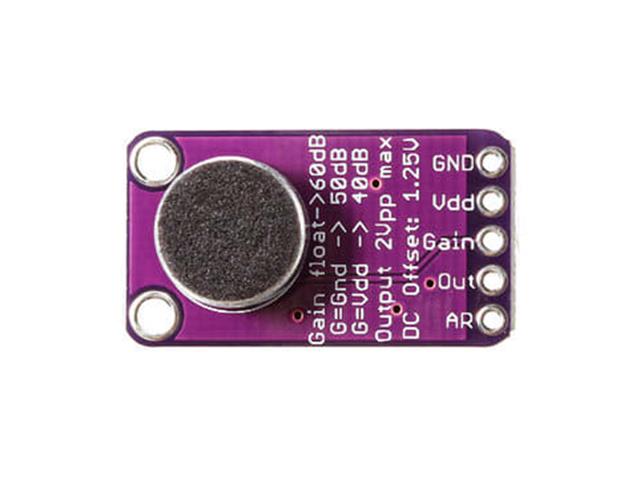

MAX9814 AGC Microphone Amplifier Module

Specifications

Automatic gain control (AGC)
3 gain Settings (40dB, 50dB, 60dB)
Programmable action time
Programmable action and release time ratio
2.7V to 5.5V power voltage range
Low input noise density 30nV/
Low THD: 0.04% (typical value)
Low power off mode
Built-in 2V low noise microphone bias
Provides a space-saving 14 pin TDFN (3mm x 3mm) package
Temperature range from -40°C to +85°C expansion stage

Additional Information

Device	Amplifier Module
Type	MAX9814 \| AGC \| Microphone

Enhance your audio projects with the HKD MAX9814 Microphone AGC Amplifier. Featuring automatic gain control and low noise performance, this compact module ensures crystal-clear sound quality in any environment. With adjustable gain settings and wide voltage compatibility, it's perfect for versatile applications. Experience professional-grade audio with ease!
