HKD SD/MICRO-SD BREAKOUT MODULE

Name: HKD SD/MICRO-SD BREAKOUT MODULE - Communica [Part No: HKD SD/MICRO-SD BREAKOUT MODULE]
Brand: Communica
SKU: HKD SD/MICRO-SD BREAKOUT MODULE
Price: 15.65 ZAR
Availability: InStock

SKU: HKD SD/MICRO-SD BREAKOUT MODULE

BRAND: Communica

R 18.00_{(inc VAT)}
R 15.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: Iot, SD Micro SD Card Breakout Module

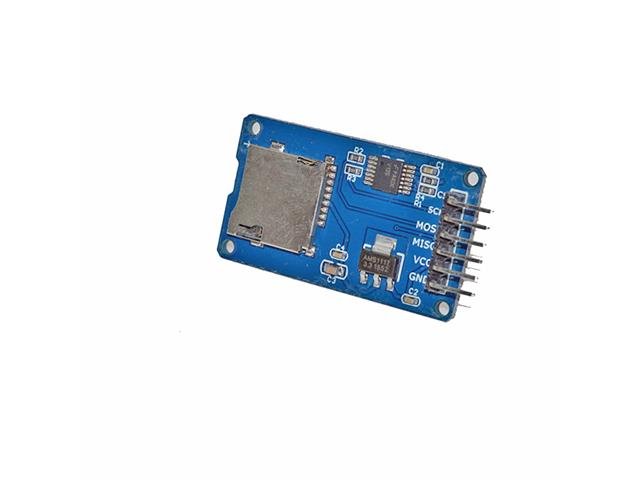

SD/Micro-SD Card Breakout Module

Overview

SD Card Module is smart homes technology, for science kits for kids, science projects, robot car on high school, primary school and secondary school.

Features

Support Micro SD card, Micro SDHC Card (High Speed Card).
Board Level Conversion Circuit, Namely the Interface Level For 5V or 3.3V.
Power Supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit Board.
The communication interface is a standard SPI interface.
4 M2 Screw Positioning Holes For Easy Installation.
Control Interface: A Total of Six Pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the Power Supply, MISO, MOSI, SCK For SPI bus, CS is the chip select signal pin.
3.3V Regulator Circuit: LDO Regulator Output 3.3V For Level Conversion Chip, 8. Micro SD Card Supply.
Level Conversion Circuit: Micro SD Card to Signal the Direction of Converts 3.3V.
MicroSD Card interface to control the direction of the MISO signal is also converted to 3.3V, general AVR microcontroller systems can read the signal.
Micro SD Card Connector: Self Bomb Deck, Easy Card Insertion.

Specifications

Power supply : 4.5-5.5V
Current : 0.2-200mA
Interface level : 3.3 or 5v
Cards Supported : Micro SD card(<=2G) Mirco SDHC card(<=32G)
Size : 42 x 24 x 12mm

Additional Information

Device	Breakout Module
Type	SD/Micro-SD Card

Unlock the potential of your projects with the HKD SD/Micro-SD Breakout Module. Designed for versatility, this module supports both Micro SD and Micro SDHC cards, making it ideal for science kits, robotics, and smart home applications. Easy installation and a reliable SPI interface ensure seamless connectivity for all your electronics needs. Enhance your projects today with this essential component!
